Tie Rod End

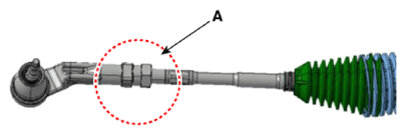

Remove the tie rod end after loosening the nut (A).
Tightening torque:

49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Before removing the tie rod end, take the measurement or mark with paint the length of the thread.
Replace the tie rod end.
Install in the reverse order of removal.
Check the alignment.
(Refer to "FRONT WHEEL ALIGNMENT ").
