Repair Procedures: Removal

Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")

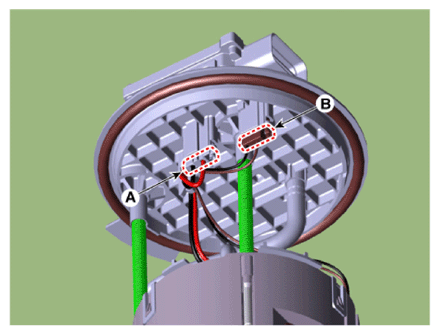

Disconnect the fuel pump motor connector (A) and fuel sender connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

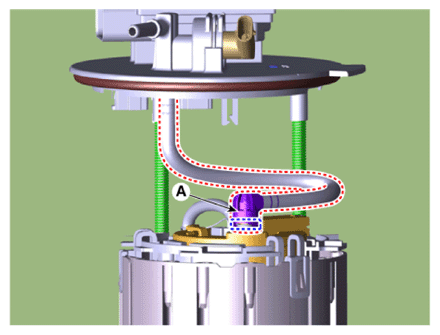

Disconnect the fuel feed tube (A) after removing the fixing clip.

Courtesy of KIA MOTORS AMERICA, INC.

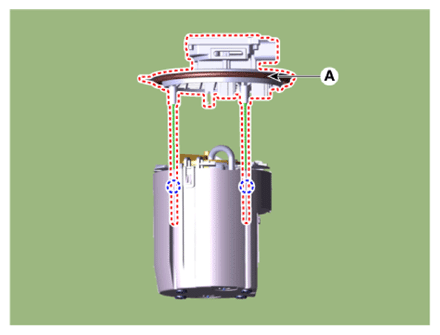

Remove the head assembly (A) after releasing the fixing hook.

Courtesy of KIA MOTORS AMERICA, INC.
