Repair Procedures: Removal

  1. Release the residual pressure in the fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").

    NOTE: When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the KDS after completion of "Release Residual Pressure in Fuel Line" work.
  2. Disconnect the negative (-) battery terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

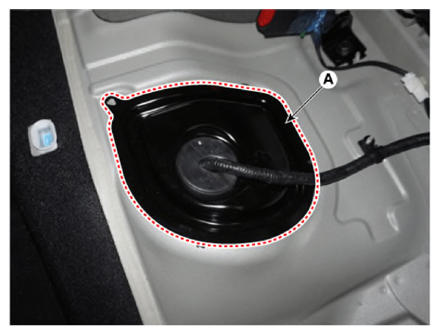

  4. Remove the fuel pump service cover (A).
    G13480723Courtesy of KIA MOTORS AMERICA, INC.

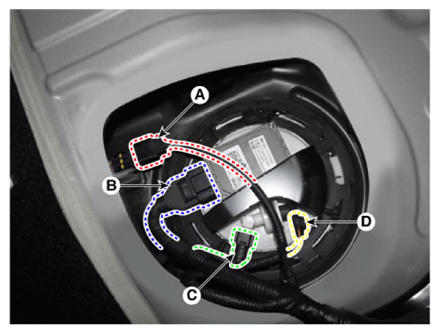

  5. Disconnect the fuel tank pressure sensor connector (A).
  6. Disconnect the fuel pump control module connector (B).
  7. Disconnect the fuel feed tube quick-connector (C).
  8. Disconnect the fuel pressure sensor connector (D).
    G13480724Courtesy of KIA MOTORS AMERICA, INC.

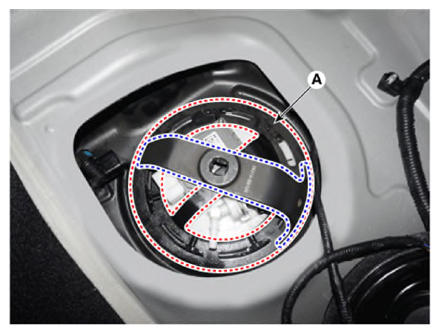

  9. Remove fuel pump plate cover (A) by using a SST (09310-B8100).
    G13480725Courtesy of KIA MOTORS AMERICA, INC.

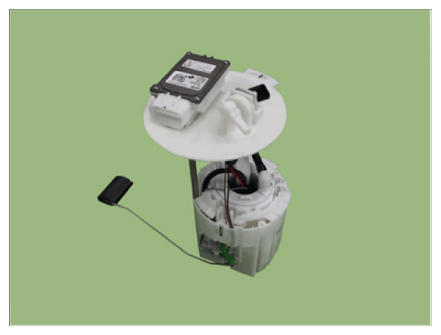

  10. Remove the fuel pump.
    G13480726Courtesy of KIA MOTORS AMERICA, INC.
