Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the engine cover.

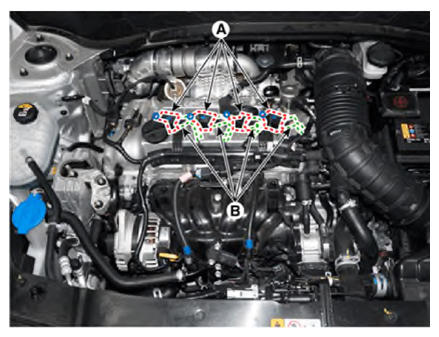

Disconnect the ignition coil connectors (B).
Remove the ignition coil (A) after loosening the mounting bolts.
Tightening torque:

9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

Courtesy of KIA MOTORS AMERICA, INC.
