Repair Procedures: Removal

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").

NOTE: When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the KDS after completion of "Release Residual Pressure in Fuel Line" work.
Disconnect the negative battery terminal.

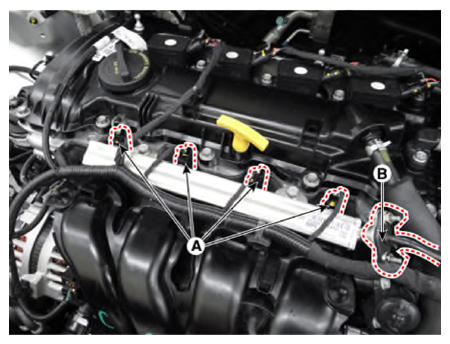

Disconnect the injector connector (A).
Remove the fuel feed tube (B) after loosening the mounting nuts.
Tightening torque :

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.5 - 52.2 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

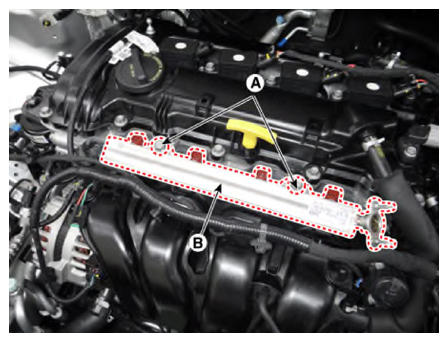

Remove the delivery pipe & injector assembly (B) after loosening the mounting bolts (A).
Tightening torque :

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

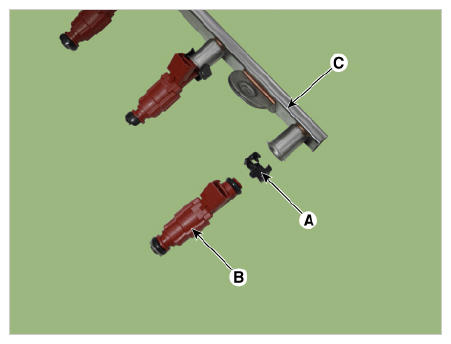

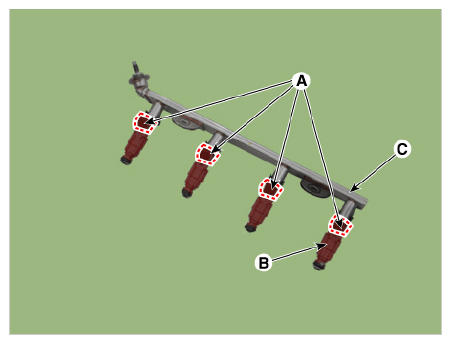

Remove the injector (B) from the delivery pipe (C) after removing the fixing clip (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
