Connector Assembly Status Test

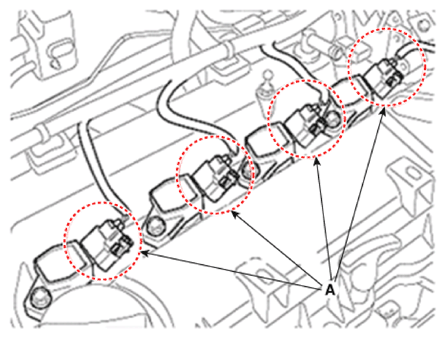

  1. Remove the connector (A) and reinstall it.
    G13482835Courtesy of KIA MOTORS AMERICA, INC.

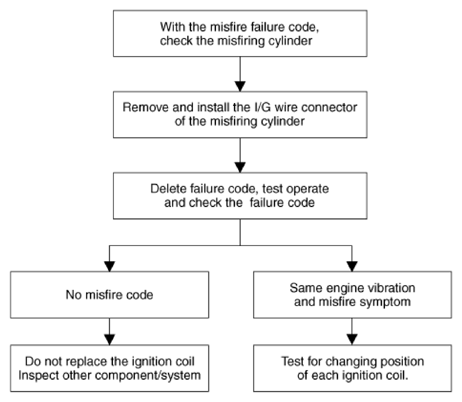

    G13482836Courtesy of KIA MOTORS AMERICA, INC.
