Smart Key Code Saving

  1. Connect the VCI II to the Data Link Connector (DLC) turn the power on KDS.

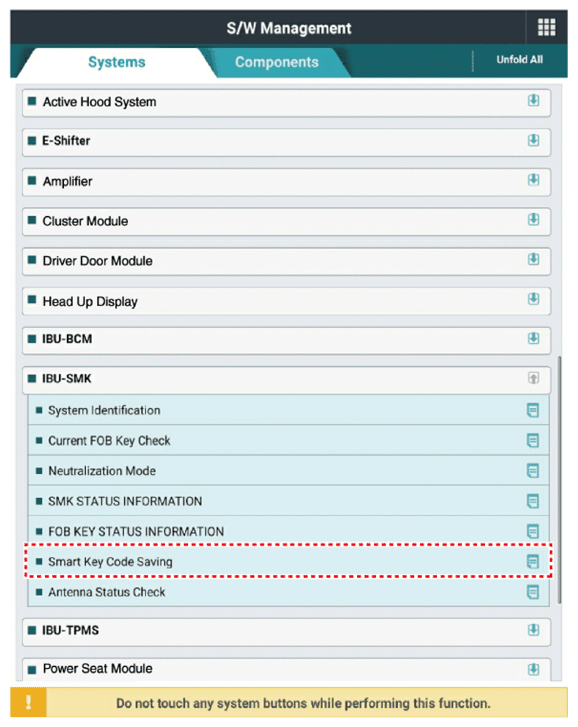

  2. Select the vehicle model and then do "Smart key code saving".
    G13663552Courtesy of KIA MOTORS AMERICA, INC.

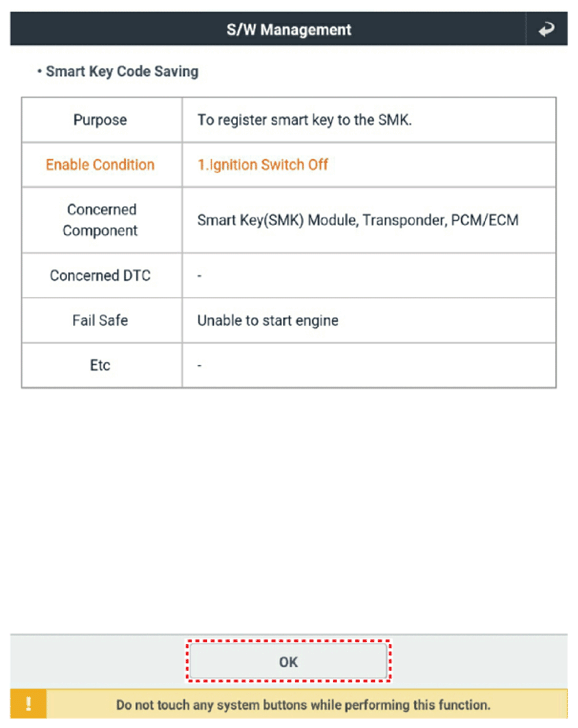

    G13663553Courtesy of KIA MOTORS AMERICA, INC.

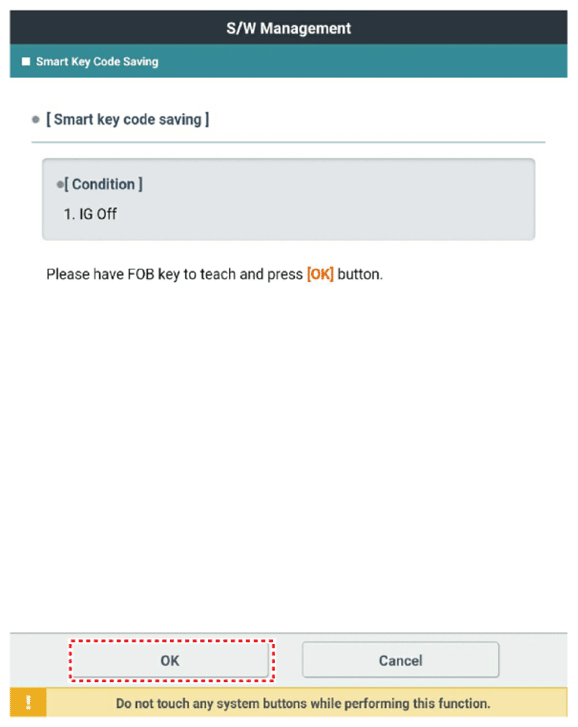

  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.
    G13663554Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.

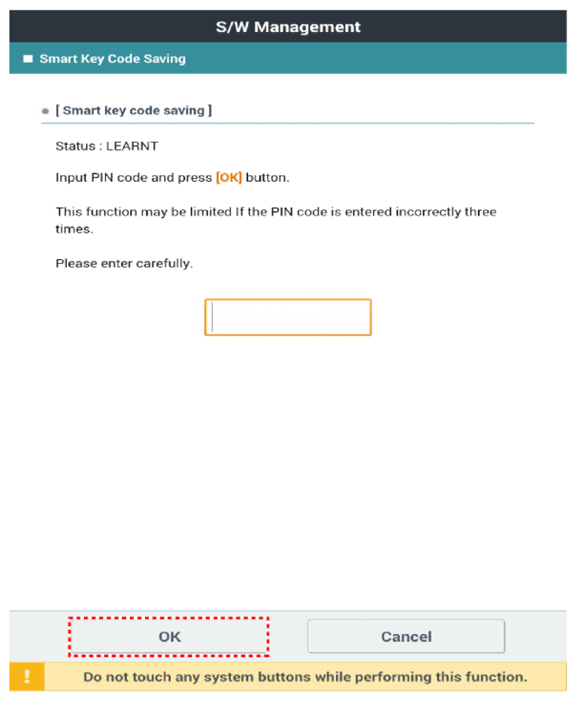

  5. Input the "Pin code" for first key teaching.
    G13663555Courtesy of KIA MOTORS AMERICA, INC.

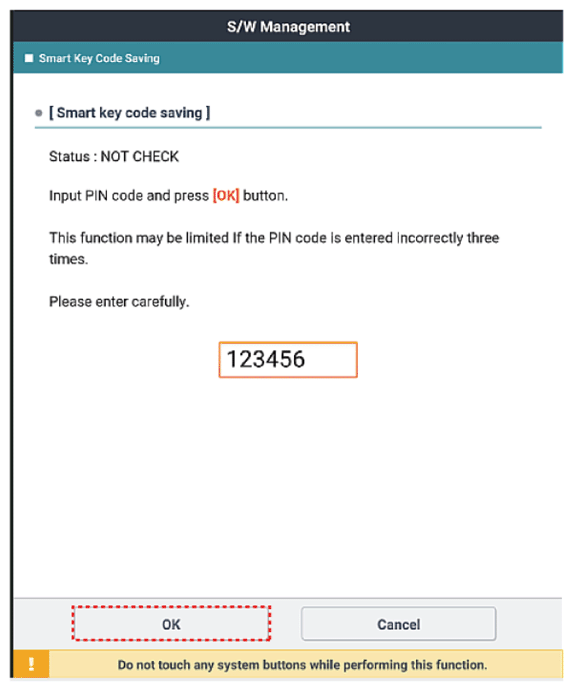

    G13663556Courtesy of KIA MOTORS AMERICA, INC.

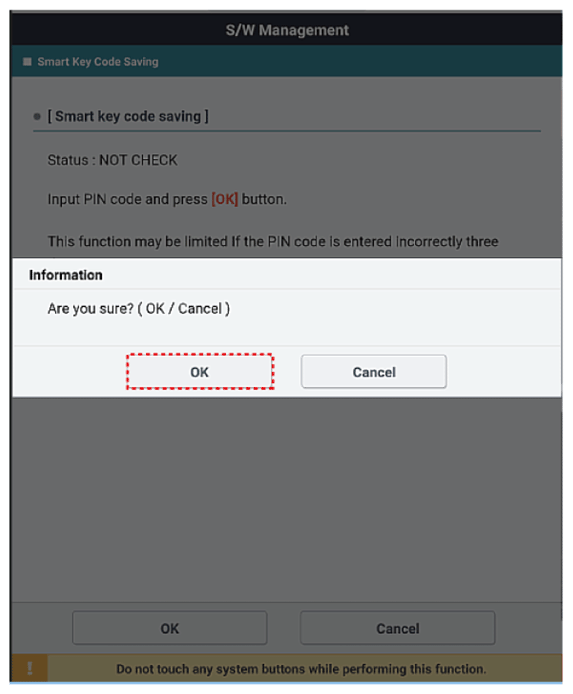

    G13663557Courtesy of KIA MOTORS AMERICA, INC.
  6. Confirm the message "First key teaching completed".

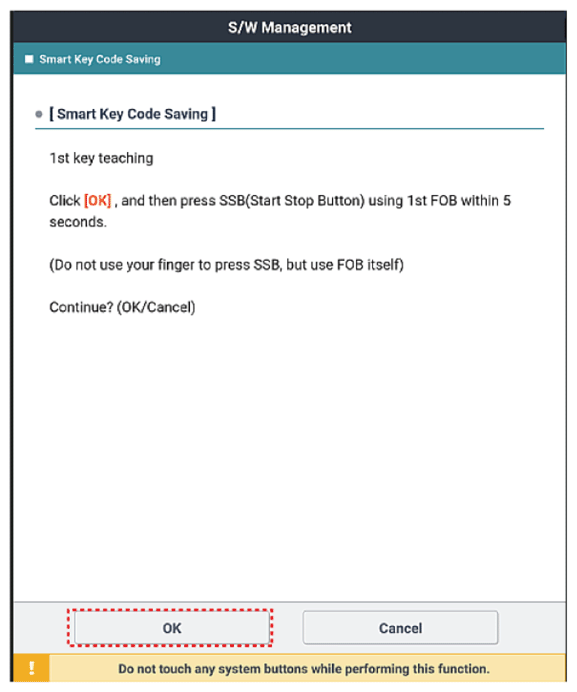

    G13663558Courtesy of KIA MOTORS AMERICA, INC.
  7. Press the SSB with smart key within 5 sec after pressing "OK".

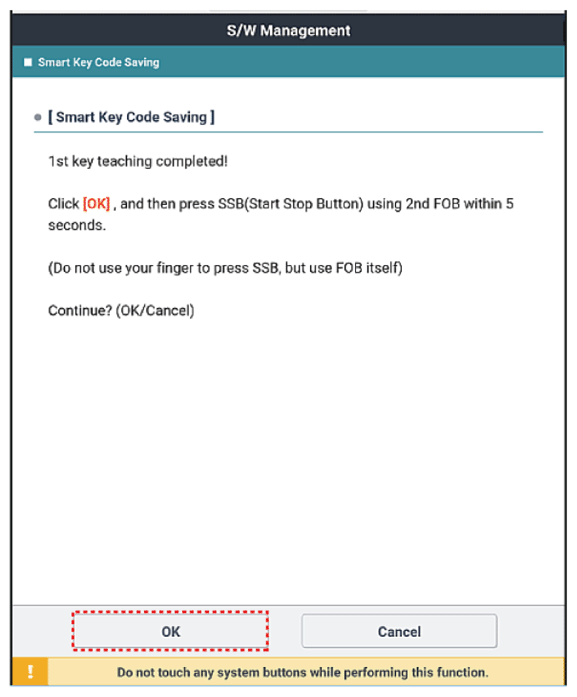

    G13663559Courtesy of KIA MOTORS AMERICA, INC.
  8. Confirm the message "Second key teaching completed".

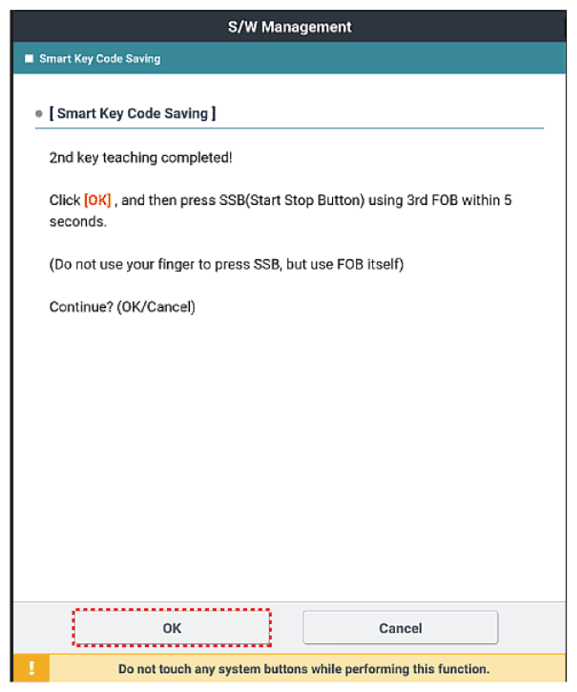

    G13663560Courtesy of KIA MOTORS AMERICA, INC.
    G13663561Courtesy of KIA MOTORS AMERICA, INC.

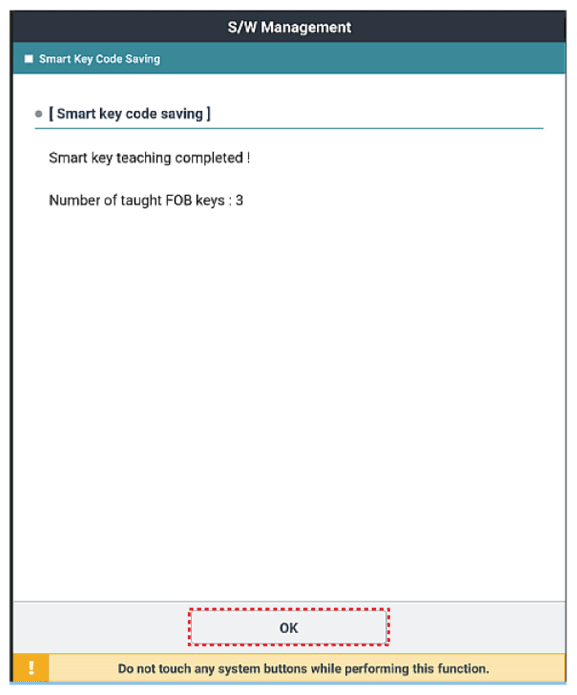

  9. Then the screen will be shown as below when key teaching process is completed.
    G13663562Courtesy of KIA MOTORS AMERICA, INC.
