Power Window Sub Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the passenger side front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

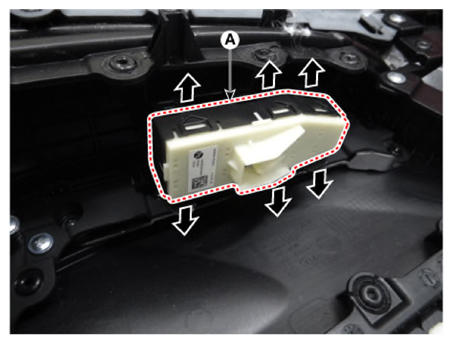

  3. Remove the power window sub switch (A) by pushing the holders in the direction of arrow.
    G13663471Courtesy of KIA MOTORS AMERICA, INC.
