Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

Be careful not to damage the O - ring (A). If the O - ring is damaged, replace with a new one.

Apply the high pressure grease (2 - 5 g) to the spline (B).

GREASE: GREASE SLP - 1 or equivalent

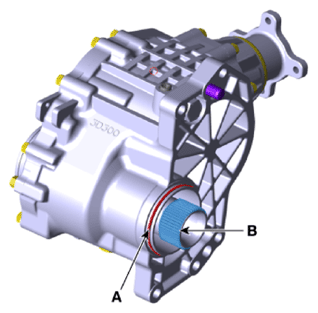

Smartstream G 2.5 GDi

Courtesy of KIA MOTORS AMERICA, INC.

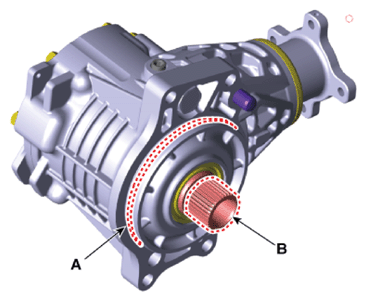

Smartstream G 2.5 T - GDi

Courtesy of KIA MOTORS AMERICA, INC.

Install the propeller shaft to be near runout marking each other.

Courtesy of KIA MOTORS AMERICA, INC.
