E-CVVT Cover

  1. Remove the engine mounting support bracket.

    (Refer to Engine Mechanical System - "ENGINE MOUNTING ")

  2. Remove the electric vacuum pump.

    (Refer to Brake System - "VACUUM PUMP ")

  3. Remove the engine support bracket (A) after removing the mounting bolts.

    Information

    Remove in order of 6→5→4→3→2→1

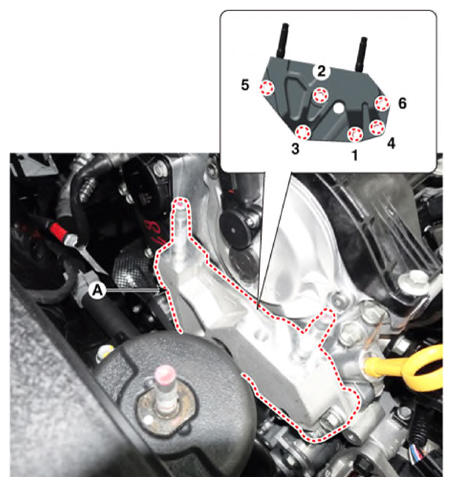

    Fig 1: Engine Support Bracket Bolts Loosening Sequence
    G13664753Courtesy of KIA MOTORS AMERICA, INC.

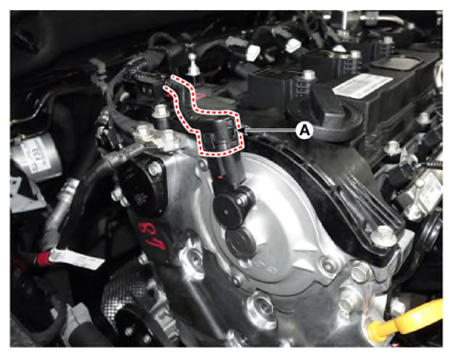

  4. Disconnect the E-CVVT cover connector (A).
    G13664754Courtesy of KIA MOTORS AMERICA, INC.

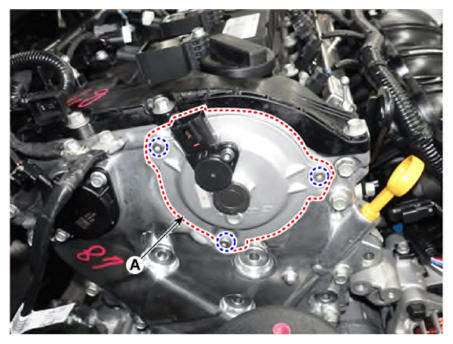

  5. Remove the E-CVVT cover (A) after removing the mounting bolts.
    G13664755Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Be careful not to apply the force on the connector brush after removing the E-CVVT cover.
