Repair Procedures: Removal

1. Disconnect the battery negative (-) terminal.

   (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

2. Remove the turbo manifold module.

   (Refer to Engine Mechanical System - "TURBO MANIFOLD MODULE ")

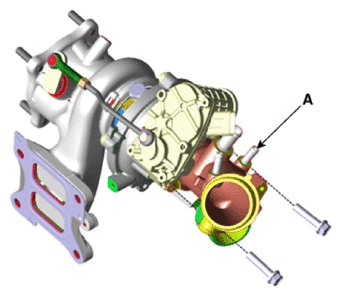

3. Remove the intercooler inlet pipe bracket (A) by removing the bolts.

   Courtesy of KIA MOTORS AMERICA, INC.

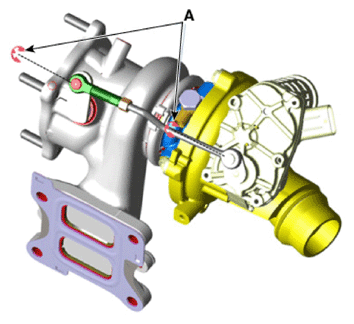

4. Remove the retaining ring (A) from the Electric Waste Gate Actuator (EWGA) rod.

   Courtesy of KIA MOTORS AMERICA, INC.

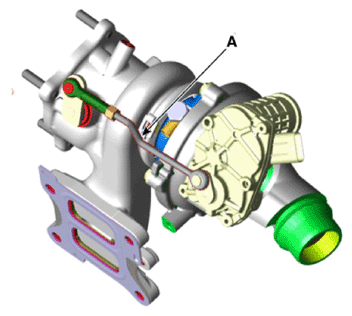

5. Remove the rod (A) from the EWGA.

   Courtesy of KIA MOTORS AMERICA, INC.

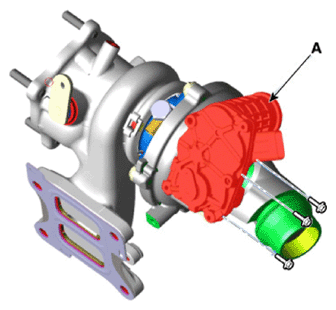

6. Remove the EWGA (A) by removing the bolts.

   Tightening torque  :

   12.7 - 13.7 N.m (1.3 - 1.4 kgf.m, 9.4 - 10.1 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

Installation

1. Install in the reverse order of removal.
