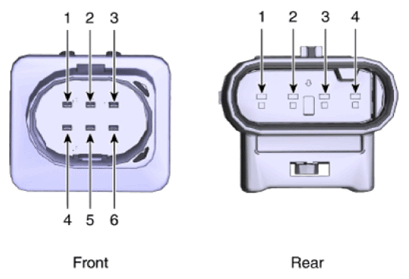

Connector and Terminal Function

Courtesy of KIA MOTORS AMERICA, INC.

Pin	Function
	Front	Rear
1	NERNST voltage	Sensor Signal +
2	Heater +	Sensor Ground -
3	Virtual Ground	Heater +
4	Resistance	Heater -
5	Heater -
6	Pumping Current
