Repair Procedures: Removal: Exhaust

Courtesy of KIA MOTORS AMERICA, INC.

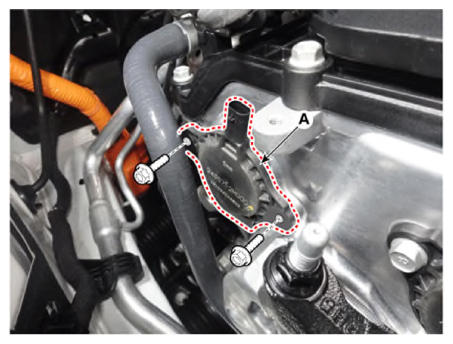

Remove the VFS (A) after removing the mounting bolts.
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
