Connector and Terminal Function

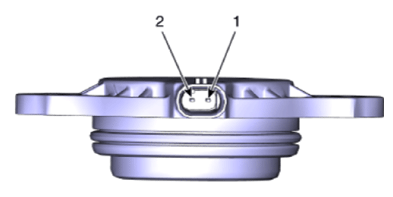

G13576102Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
1 Power
2 Ground
