Automatic Transaxle Control System (HEV)
›
Position Sensor
›
Components And Components Location
›
Component
Components And Components Location: Component

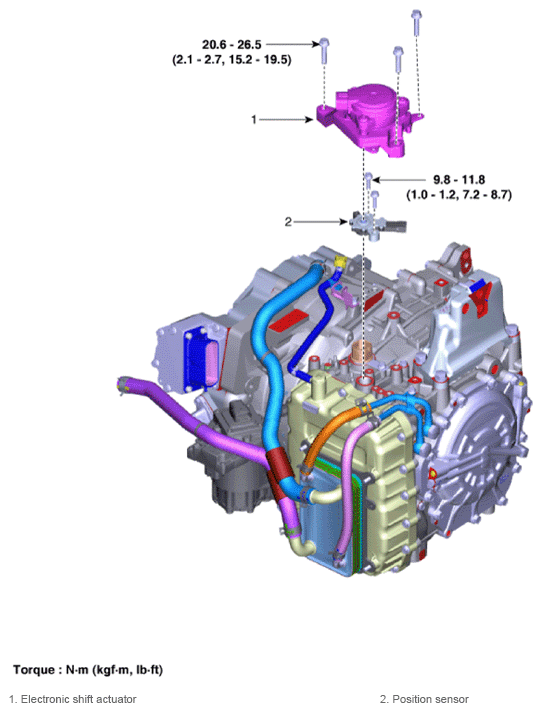

Fig 1: Position Sensor Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
