Repair Procedures: Inspection

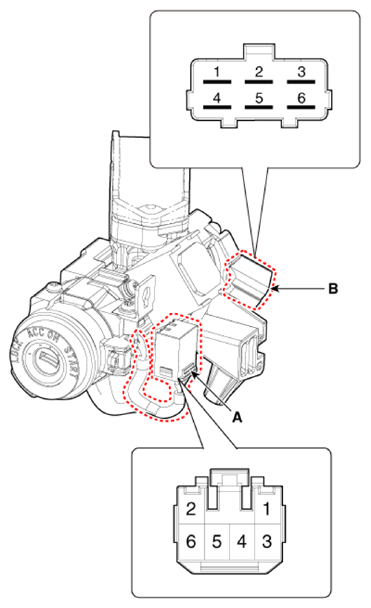

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.
    G13578404Courtesy of KIA MOTORS AMERICA, INC.

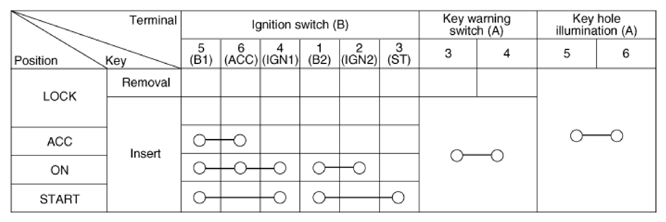

  2. Check for continuity between the terminals.
    G13578405Courtesy of KIA MOTORS AMERICA, INC.
