Repair Procedures: Removal

NOTE: If the FPCM needs to be replaced, replace the plate cover assembly.

Remove the fuel pump module.
(Refer to Fuel Delivery System - "FUEL PUMP MODULE ")

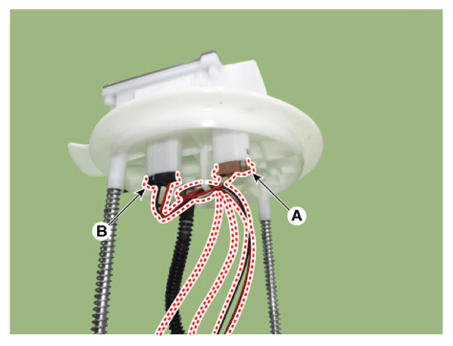

Disconnect the fuel sender connector (A) fuel pump connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

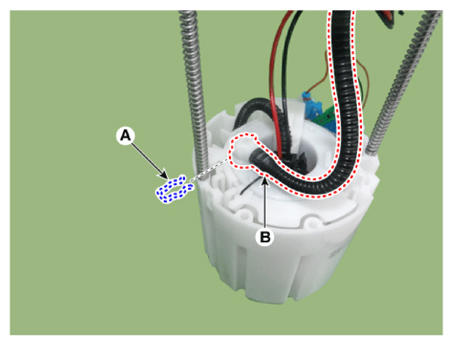

Separate the fuel feed tube quick-connector (B) after removing the fixing clip (A).

Courtesy of KIA MOTORS AMERICA, INC.

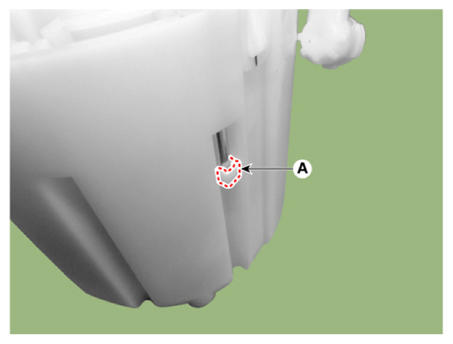

Remove the stopper (A).

Courtesy of KIA MOTORS AMERICA, INC.

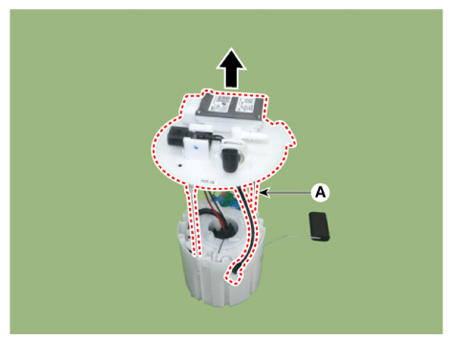

Remove the plate cover assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.
