Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

    (Refer to Charging System - " AUXILIARY BATTERY  ")

  2. Remove the engine cover.

    (Refer to Engine Mechanical System - "ENGINE COVER ")

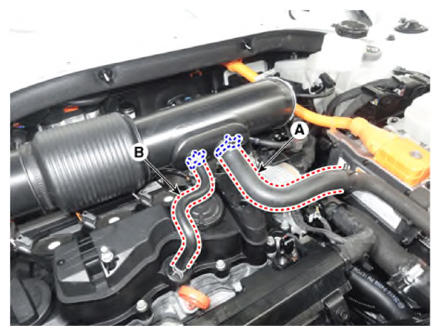

  3. Disconnect the RCV hose (A) and breather hose (B).
    G13575775Courtesy of KIA MOTORS AMERICA, INC.

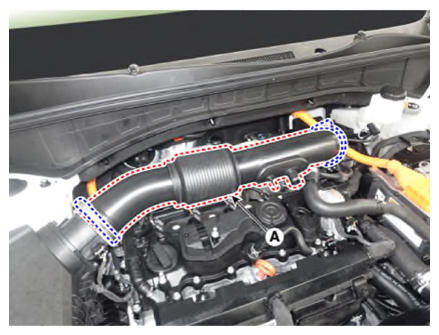

  4. Remove the intake hose (A) after releasing the clamps.

    Tightening torque:

    4.9 - 6.8 N.m (0.5 - 0.7 kgf.m, 3.7 - 5.0 lb.ft, 43.4 - 60.7 lb.in)

    G13575776Courtesy of KIA MOTORS AMERICA, INC.

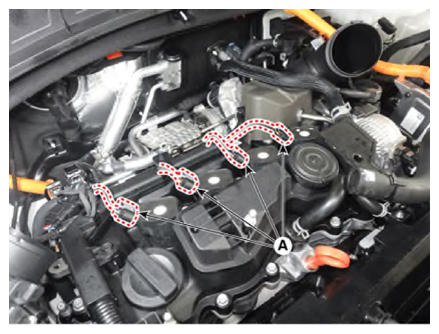

  5. Disconnect the ignition coil connectors (A).
    G13575777Courtesy of KIA MOTORS AMERICA, INC.

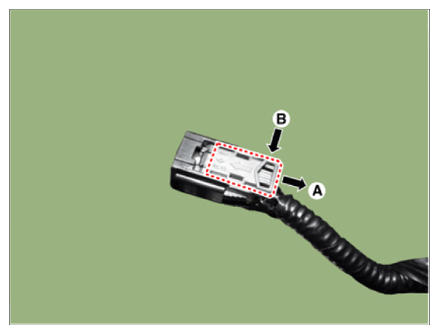

    NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    G13575778Courtesy of KIA MOTORS AMERICA, INC.

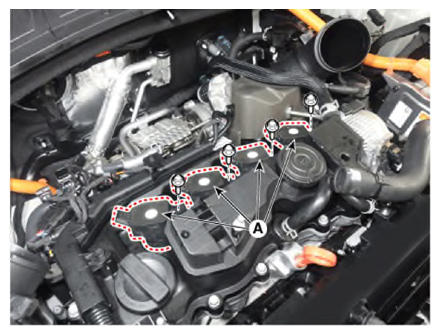

  6. Remove the ignition coil (A) after removing mounting bolt.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 13.3 - 16.0 lb.ft)

    G13575779Courtesy of KIA MOTORS AMERICA, INC.
