E-CVVT Cover

Remove the engine mounting bracket.
(Refer to Engine Mechanical System - "ENGINE MOUNTING ")

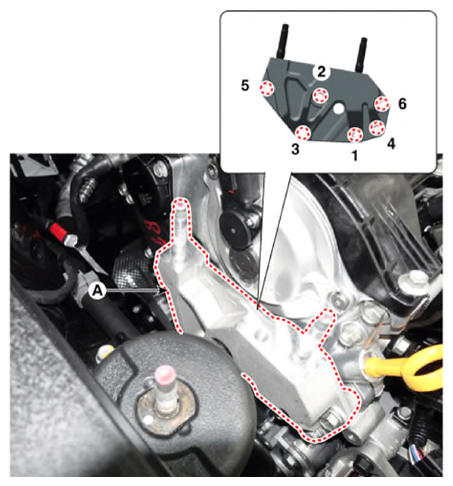

Remove the engine support bracket (A) after loosening the mounting bolts.

Fig 1: Engine Support Bracket Mounting Bolts Loosening Sequence
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: loosen in order of 6→5→4→3→2→1

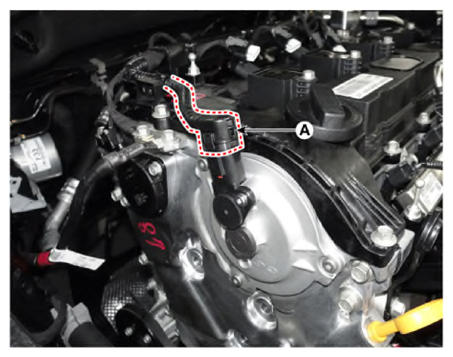

Disconnect the E-CVVT cover connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

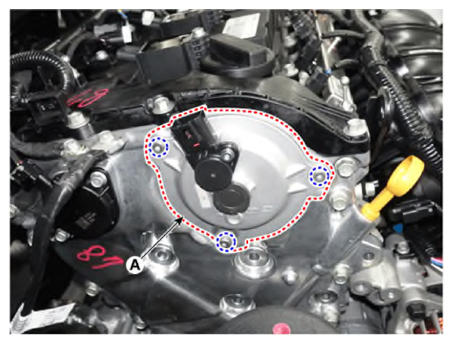

Remove the E-CVVT cover (A) after loosening the bolts.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to apply the force on the connector brush after removing the E-CVVT cover.
