Description And Operation: Description

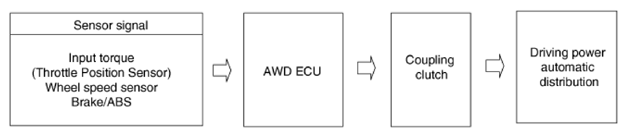

• The AWD ECU distributes the driving force to the front/rear wheel through controlling the multi plate clutch on the AWD transfer case by analyzing the input information such as the wheel speed, accelerator and steering angle depending on the road condition and driving state.
• The AWD ECU controls the motor, warning lamp and indicating lamp and communicates with the tester equipment.

Courtesy of KIA MOTORS AMERICA, INC.
