Ignition Switch/Steering Lock
›
Button Engine Start System (Except HEV)
›
Start-Stop Button
›
Schematic Diagrams
›

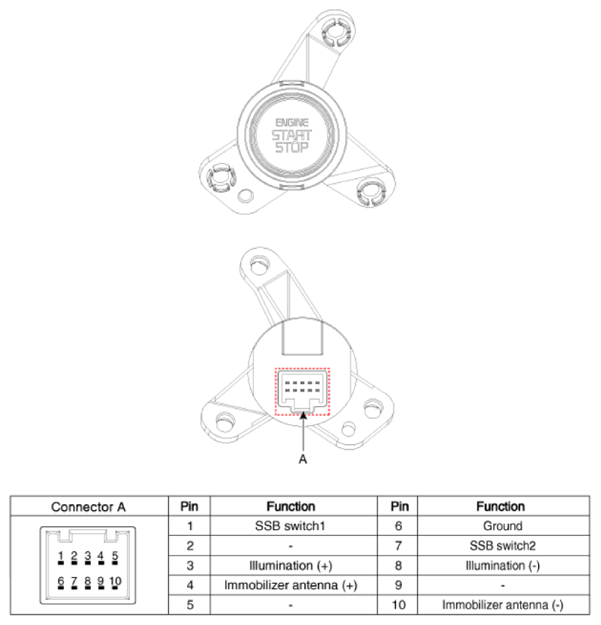

Connector and Terminal function
Connector and Terminal function
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
