Repair Procedures: Removal

Disconnect the battery negative (-) terminal.
Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

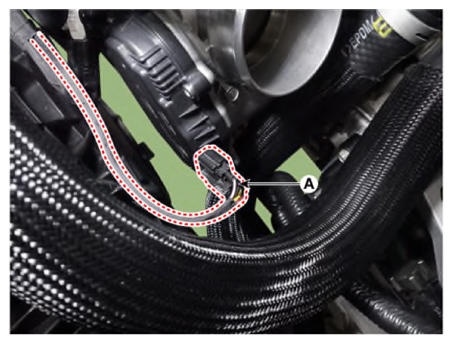

Disconnect the ETC module connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

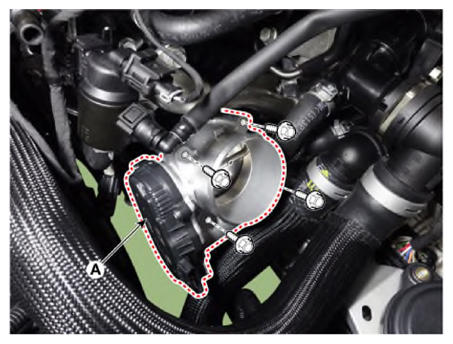

Remove the ETC module (A) after removing the mounting bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
