Repair Procedures: Cleaning

Remove the ETC.
(Refer to ETC (Electronic Throttle Control) System - "REMOVAL ")

NOTE: Cleaning the ETC after removing it.

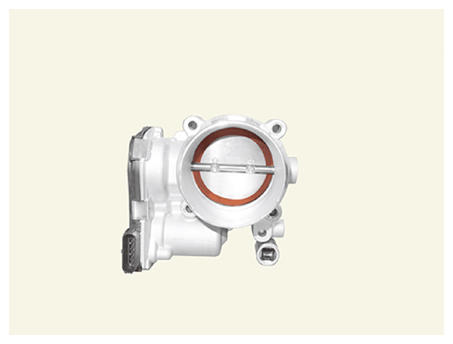

Clean the pollutant in the throttle body using a soft cloth moistened with cleaning fluid.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Do not spray cleaning fluid to ETC directly and use a lint free cloth moistened by cleaning fluid.
- Be careful not to wipe the coating fluid around the shaft for preventing faulty controlling idle by flow contaminant into shaft internal bearing and excessive leakage air.
Install the ETC module.
(Refer to ETC (Electronic Throttle Control) System - "INSTALLATION ")

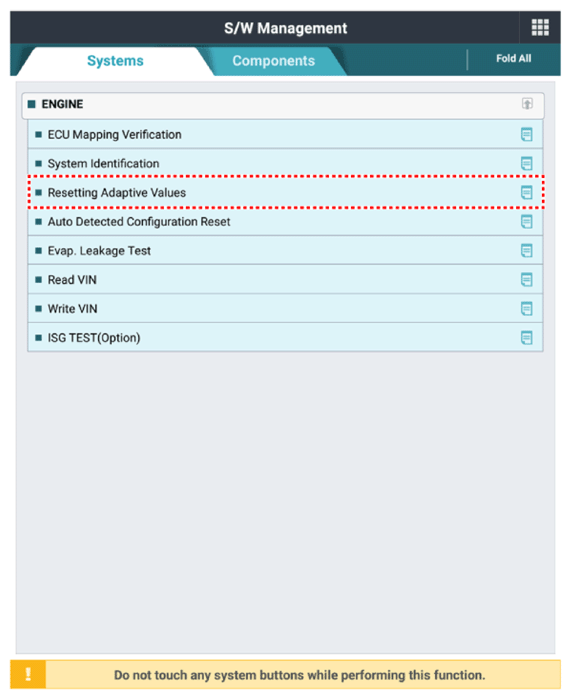

Reset the ECM adaptive values after replacing the ETC.

Courtesy of KIA MOTORS AMERICA, INC.
Perform the ETC learning procedure.
(Refer to ETC (Electronic Throttle Control) System - "ADJUSTMENT ")
