Start/Stop Button
›

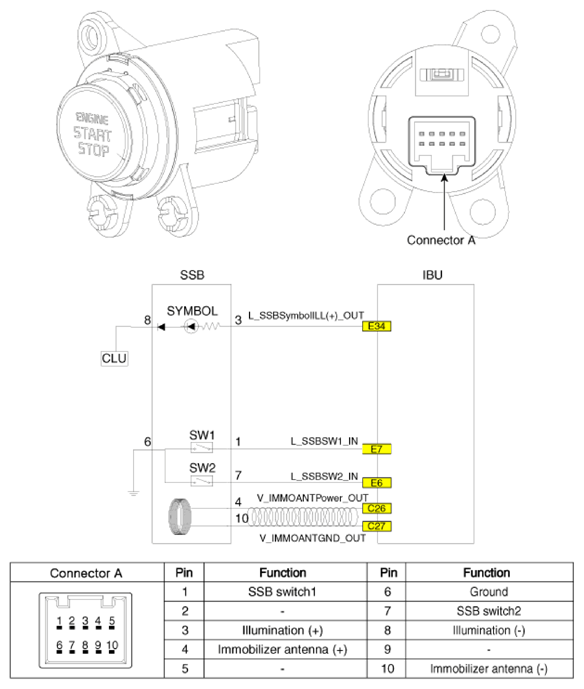

Schematic Diagrams
›
Connector And Terminal Function
Connector And Terminal Function
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
