Front Door Lock Module
- Remove the front door module.
(Refer to Body - "FRONT DOOR MODULE ")

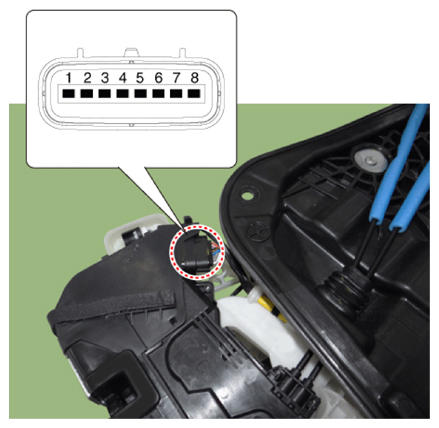

- Disconnect the connector from the door lock actuator.

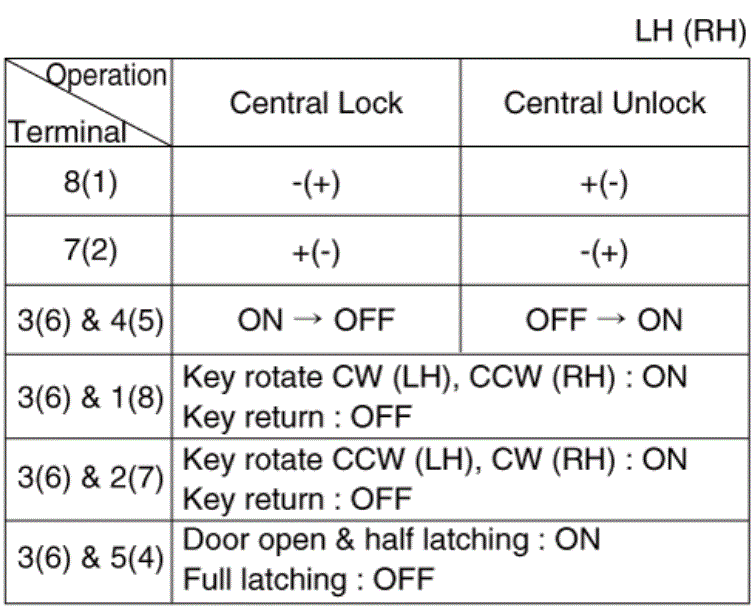

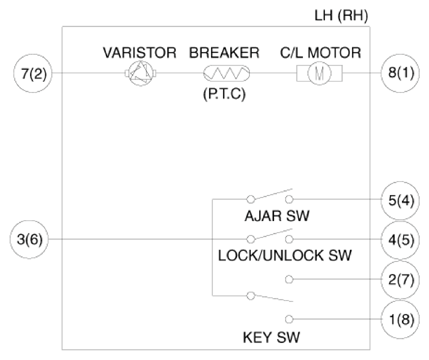

Pin Function Left Right 1 Key unlock switch Motor 2 2 Key lock switch Motor 3 3 COM - 4 Lock/Unlock switch Ajar switch 5 Ajar switch Lock/Unlock switch 6 - COM 7 Motor 3 Key lock switch 8 Motor 2 Key unlock switch - Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.
