Monitor KDS Data

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification

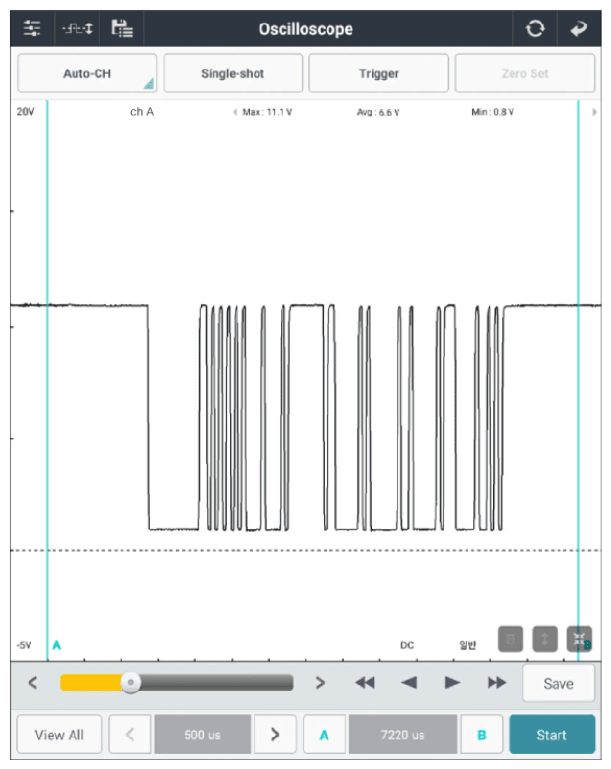

Ignition "ON"	IBU connector	6 (EMS COM)	Chassis ground	-	Fig.1

G13289311

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and go to "Verification of Repair " procedure.

No Good

Go to "SMK Status Information" procedure.

SMK Status Information
Inspection Condition	Inspection Procedure	Reference
Ignition "ON", engine "OFF"	Connect KDS to Data Link Connector(DLC). Perform "Vehicle S/W Management" of concerned component with KDS.	Fig.1 to 2

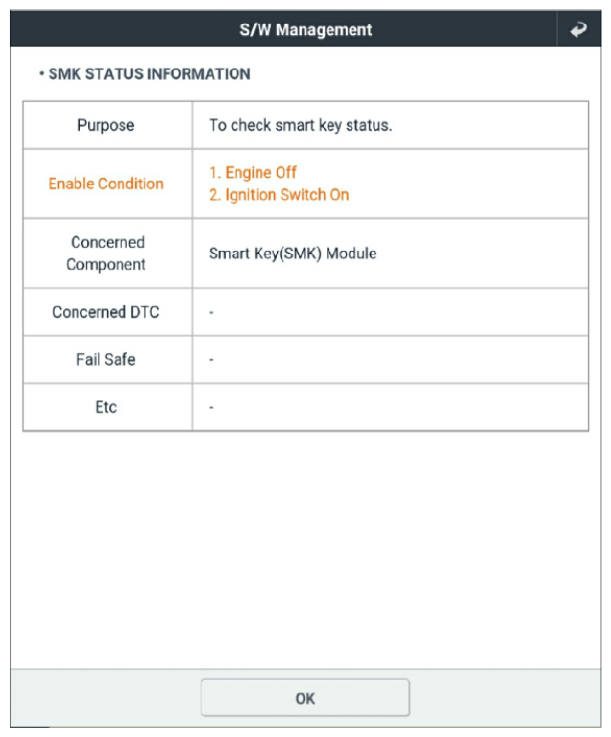

G13289312

Courtesy of KIA MOTORS AMERICA, INC.

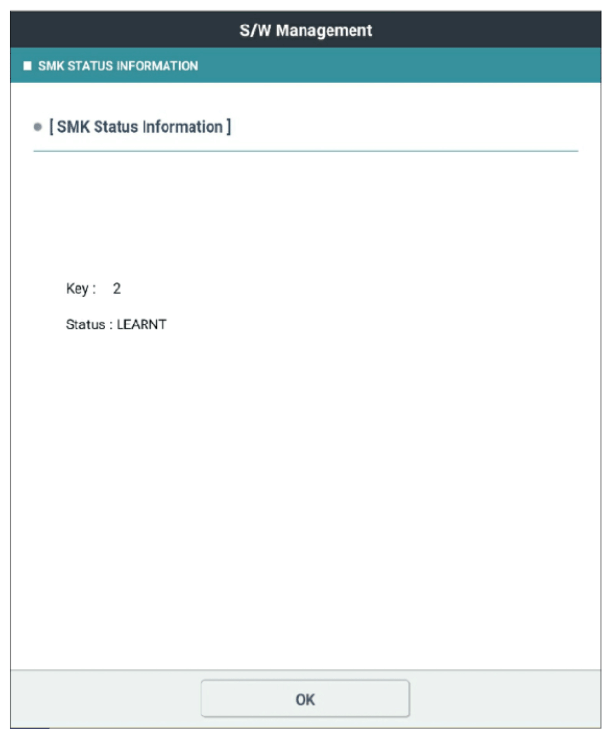

G13289313

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and go to "Verification of Repair " procedure.

No Good

Go to "Wiring Inspection " procedure.
