Components And Components Location: Components

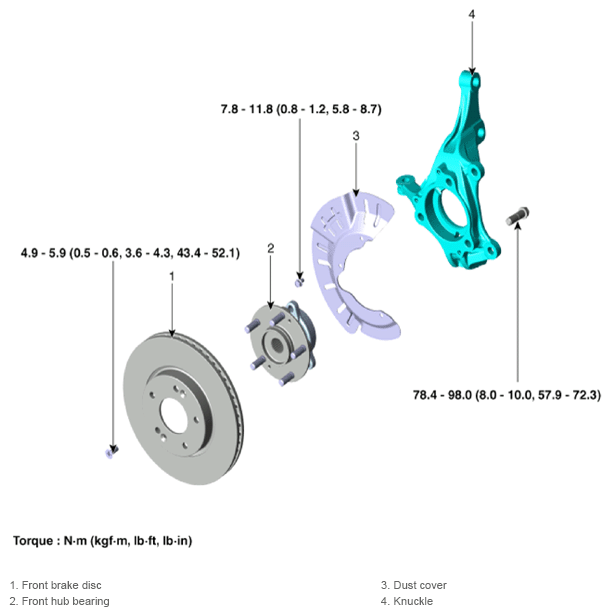

Fig 1: Front Hub/Knuckle Components Location With Torque Specification
G13281231Courtesy of KIA MOTORS AMERICA, INC.
