Removal And Installation

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

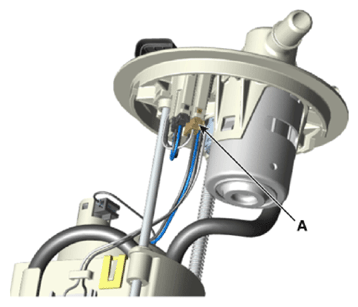

  2. Disconnect the fuel sender connector (A).
    G13283873Courtesy of KIA MOTORS AMERICA, INC.

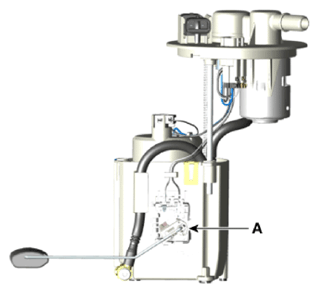

  3. Remove the fuel sender (A).
    G13283874Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
