Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

Install the concentric slave cylinder bolts (3-ea). Not to be bent or twisted, Tighten them in diagonal directions.
When it is assembled, it must be free from invasive foreign matters and oil leakage.
Do not allow grease or oil to contaminate bearing and operating parts of concentric slave cylinder.
(Noise/wear due to abnormal slip during operation)

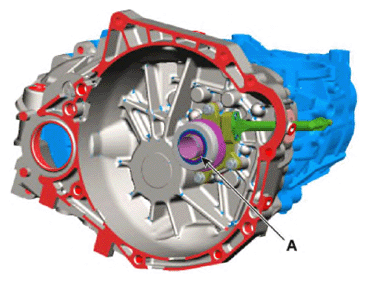

Install the concentric slave cylinder (A).
Tightening torque:

19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install the manual transaxle assembly.
G 2.0 MPI NU(ATKINSON) (Refer to Manual Transaxle System - "MANUAL TRANSAXLE ")
Perform bleeding air procedure in concentric slave cylinder after pouring the brake fluid.
(Refer to Concentric Slave Cylinder - " Adjustment ")
