Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").

  2. Remove the rear seat.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

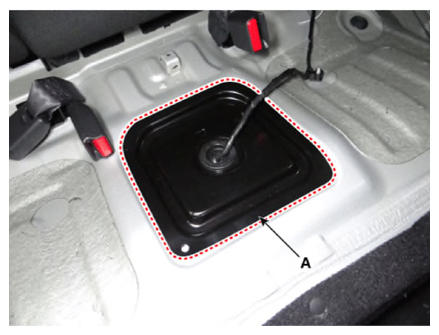

  3. Remove the fuel pump service cover (A).
    G13280945Courtesy of KIA MOTORS AMERICA, INC.

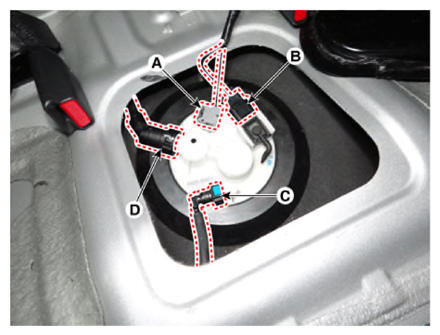

  4. Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).
  5. Disconnect the fuel feed tube quick connector (C) and the vapor tube quick-connector (D).
    G13280946Courtesy of KIA MOTORS AMERICA, INC.

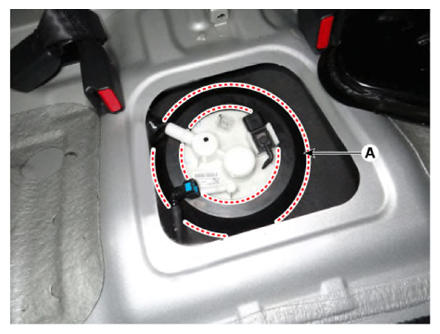

  6. Remove the fuel pump grommet (A).
    G13280947Courtesy of KIA MOTORS AMERICA, INC.

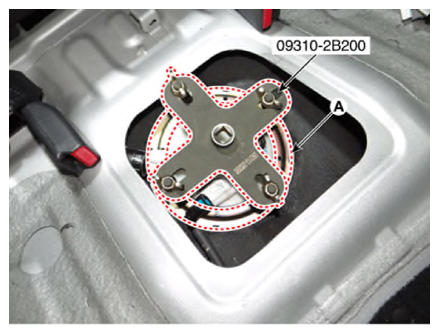

  7. Remove the fuel pump plate cover (A) by using the SST (09310-2B200)
    G13280948Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove the fuel pump from the fuel tank.
