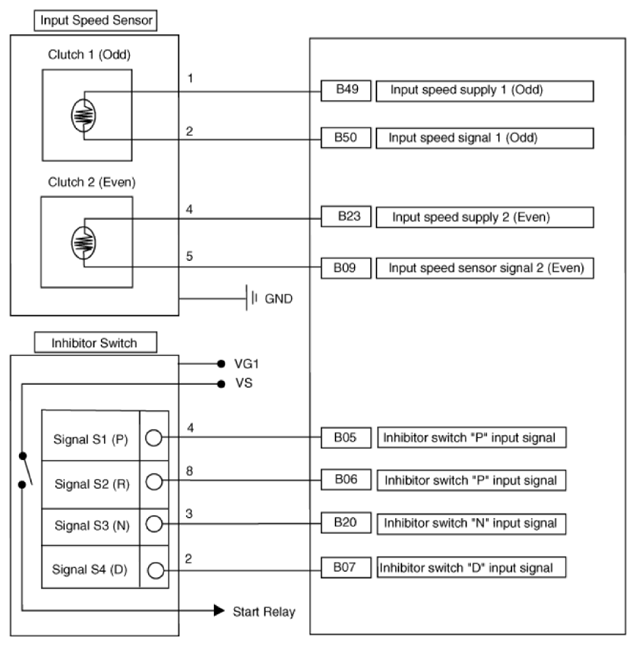

Home › Kia › 2021 › Soul Turbo › Repair and Diagnosis › Transmission › Automatic Trans › Double Clutch Transmission Control System - 1.6L › DCT Control Module (TCM) › Schematic Diagrams › Circuit Diagram
