Repair Procedures: Removal

Place the shift lever in the "N" position.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

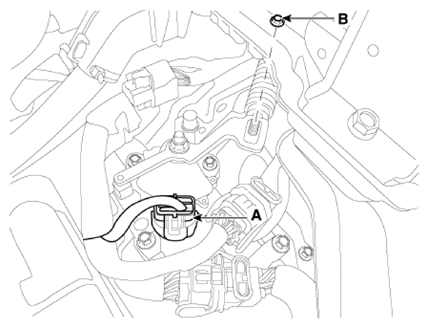

Disconnect the inhibitor switch connector (A).
Loosen the shift cable mounting nut (B).

Courtesy of KIA MOTORS AMERICA, INC.

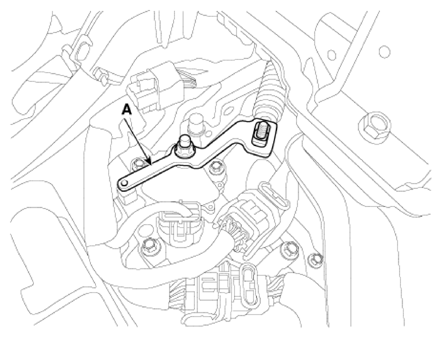

Remove the manual control lever (A).

Courtesy of KIA MOTORS AMERICA, INC.

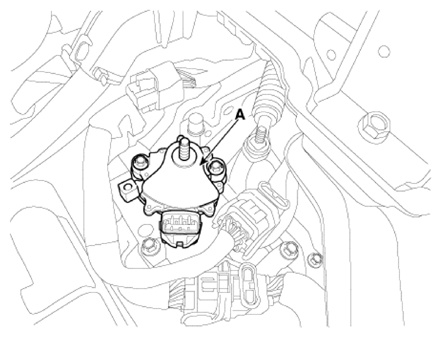

Remove the inhibitor switch (A).

Courtesy of KIA MOTORS AMERICA, INC.
