Repair Procedures: Installation

1. Install in the reverse order of removal.

NOTE:

• Before installation, insert "N range fixing pin"(A) of shift lever after checking the shift lever and manual control lever are on "N" range.
• Install the shift cable after checking the direction of projection to prevent incorrect assembly.

  Courtesy of KIA MOTORS AMERICA, INC.

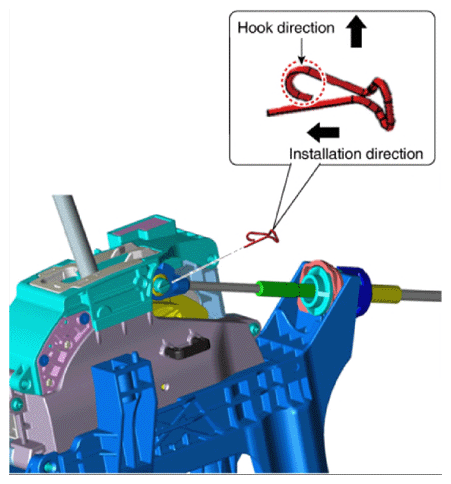

• Mind the installation direction of snap pin and install the snap pin with the hook facing upward.

  Courtesy of KIA MOTORS AMERICA, INC.

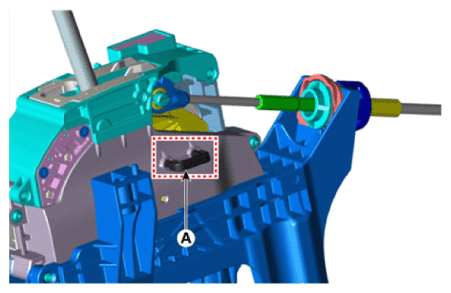

• Make sure to get rid of "N range fixing pin"(A) after installing the shift lever assembly.

Courtesy of KIA MOTORS AMERICA, INC.
