Repair Procedures: Replacement

  1. Remove the front door window glass.

    (Refer to Front Door - "FRONT DOOR WINDOW GLASS ")

  2. Remove the front door outside handle.

    (Refer to Front Door - "FRONT DOOR OUTSIDE HANDLE ")

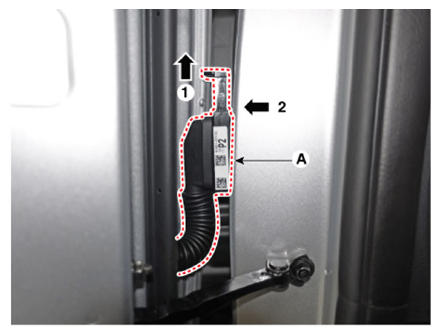

  3. Disconnect the front door main connector (A).
    G13281904Courtesy of KIA MOTORS AMERICA, INC.

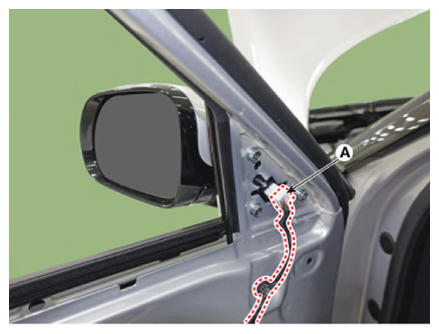

  4. Disconnect the outside rear view mirror connector (A).
    G13281905Courtesy of KIA MOTORS AMERICA, INC.

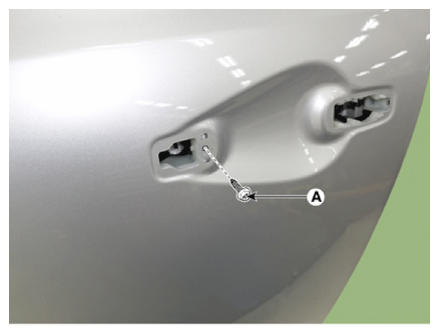

  5. Loosen the front outside handle base mounting bolt (A).
    G13281906Courtesy of KIA MOTORS AMERICA, INC.

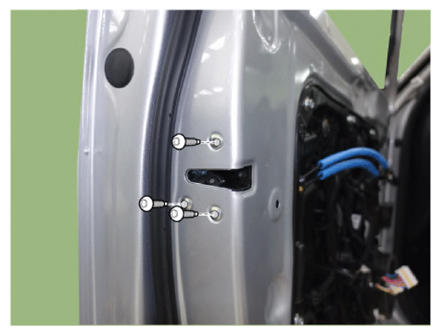

  6. Loosen the front door latch mounting screws.

    Tightening torque:

    6.9 - 10.8 N.m (0.7 - 1.1 Kgf.m, 5.0 - 8.0 lb.ft)

    G13281907Courtesy of KIA MOTORS AMERICA, INC.

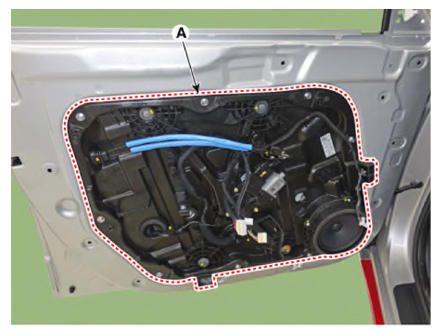

  7. Loosen the mounting bolts and remove the front door module (A).

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

    G13281908Courtesy of KIA MOTORS AMERICA, INC.

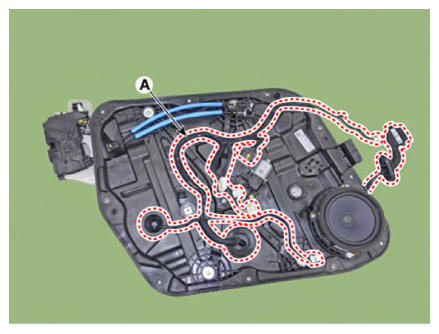

  8. Disconnect the connectors and front door module wiring harness (A).
    G13281909Courtesy of KIA MOTORS AMERICA, INC.
  9. Remove the front door latch assembly.

    (Refer to Front Door - "FRONT DOOR LATCH ")

  10. Remove the front door speaker

    (Refer to Body Electrical System - "SPEAKER ")

  11. Remove the front power window motor.

    (Refer to Body Electrical System - "POWER WINDOW MOTOR ")

  12. To install, reverse removal procedure.

    Information

    • Make sure connectors are connected properly and each rod is connected securely.
    • Make sure the door locks/unlocks and opens/closes properly.
