Front View Camera System
›
Front View Camera Unit
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

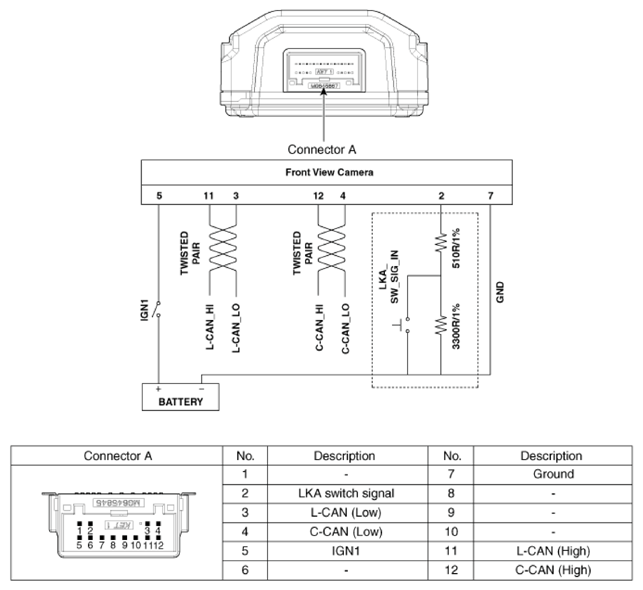

Fig 1: Front View Camera Unit Connector End View And Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
