Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 10

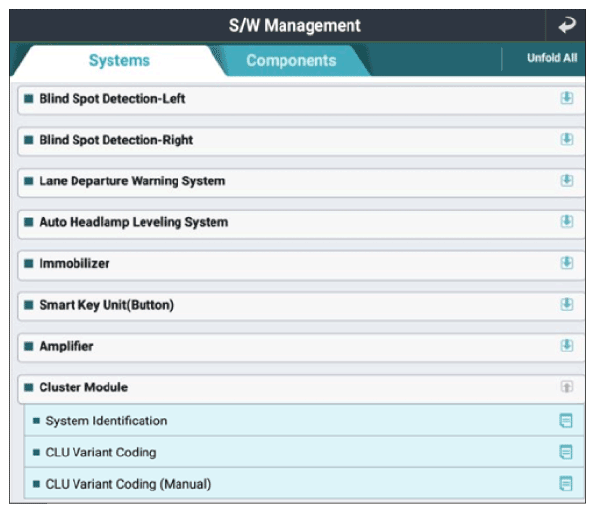

G13285921Courtesy of KIA MOTORS AMERICA, INC.

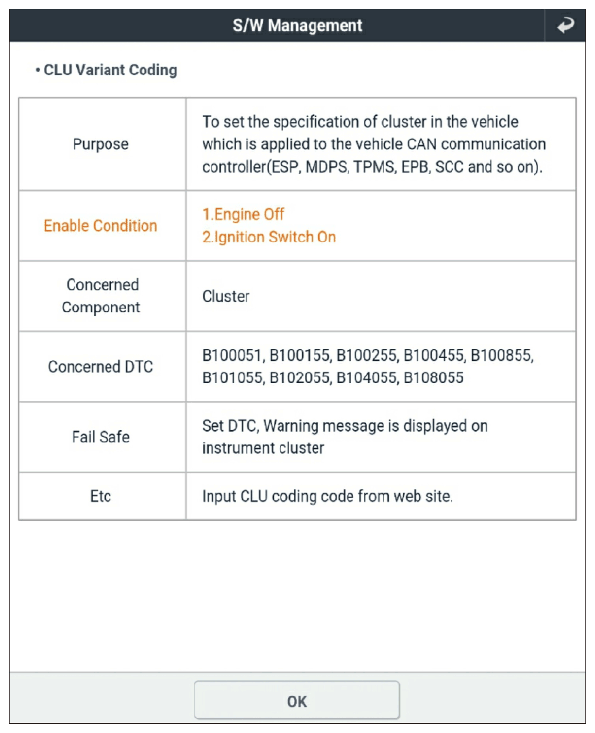

G13285923Courtesy of KIA MOTORS AMERICA, INC.

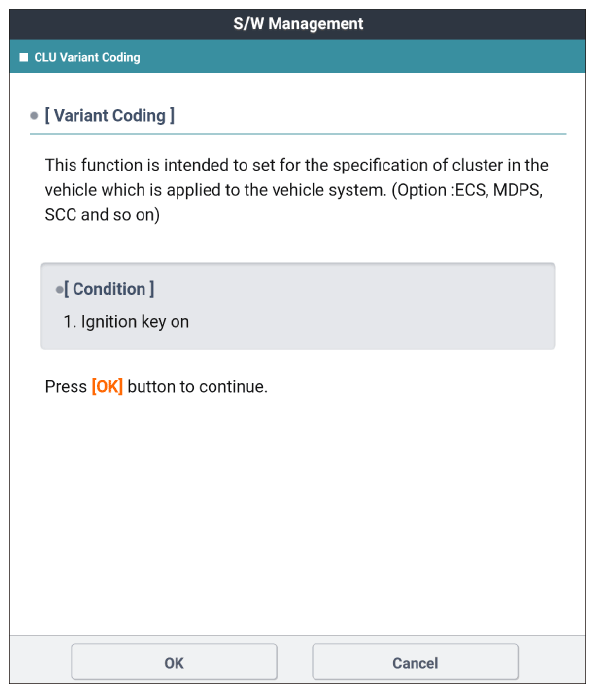

G13285924Courtesy of KIA MOTORS AMERICA, INC.

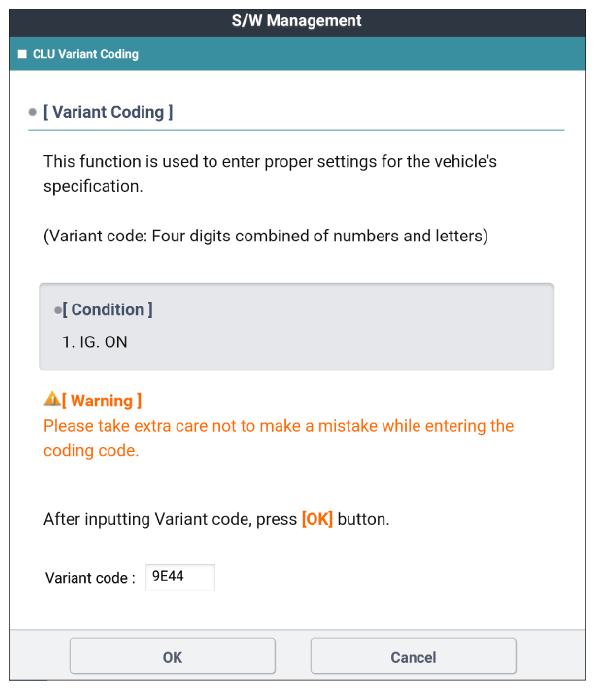

G13285925Courtesy of KIA MOTORS AMERICA, INC.

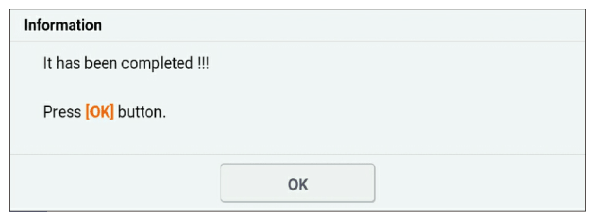

G13285926Courtesy of KIA MOTORS AMERICA, INC.

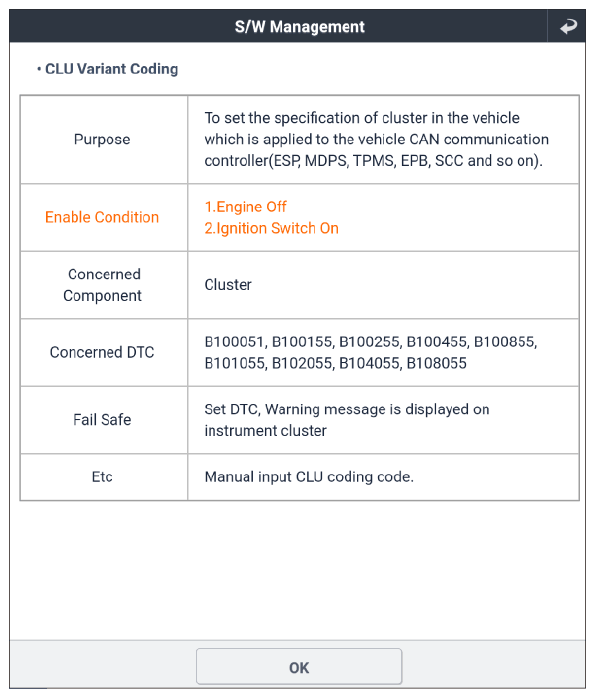

G13285927Courtesy of KIA MOTORS AMERICA, INC.

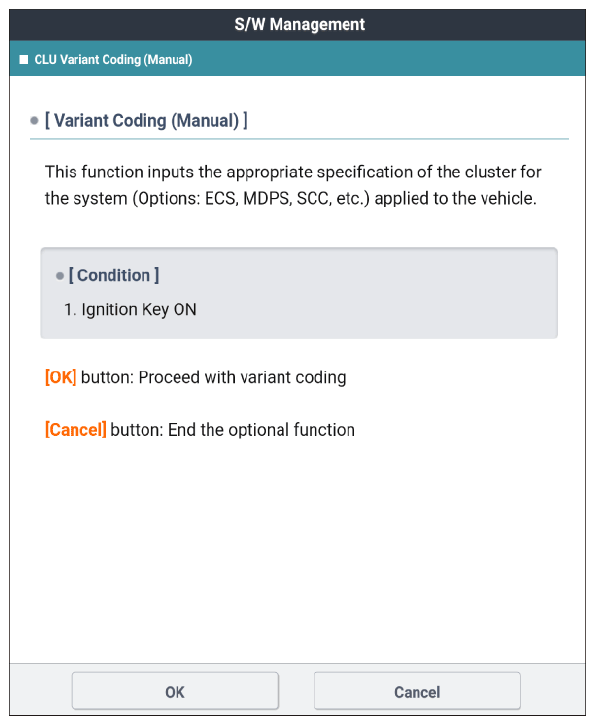

G13285928Courtesy of KIA MOTORS AMERICA, INC.

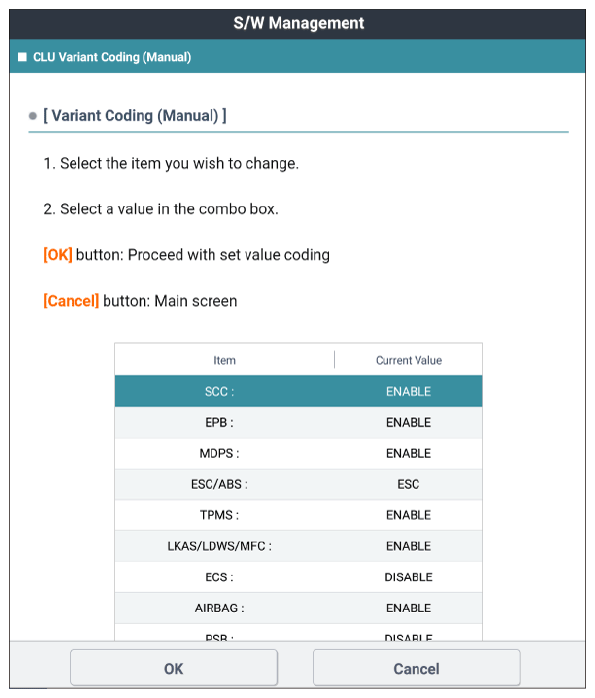

G13285929Courtesy of KIA MOTORS AMERICA, INC.

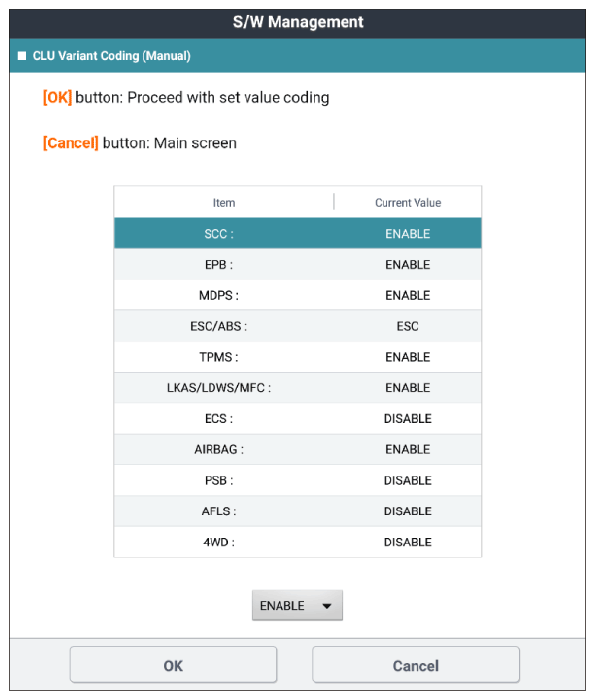

G13285930Courtesy of KIA MOTORS AMERICA, INC.
G13285931Courtesy of KIA MOTORS AMERICA, INC.
