Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

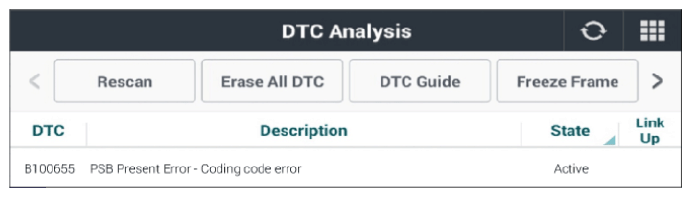

 Fig.1
G13286034Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

  1. Go to "System Inspection " procedure.

History/Pending Fault

  1. Go to "Verification of Repair " procedure.
