Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 10

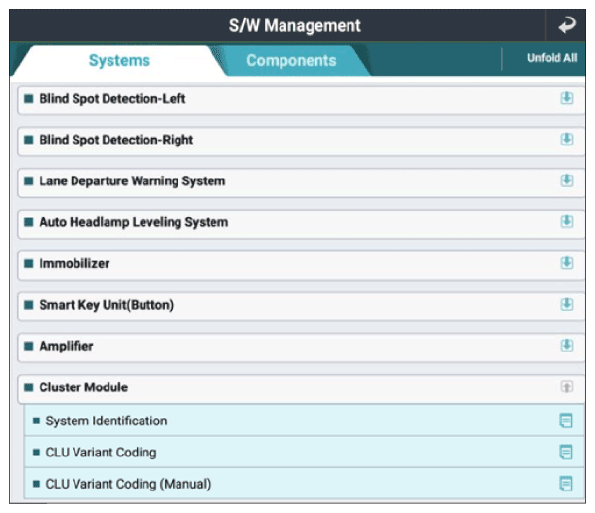

G13286143Courtesy of KIA MOTORS AMERICA, INC.

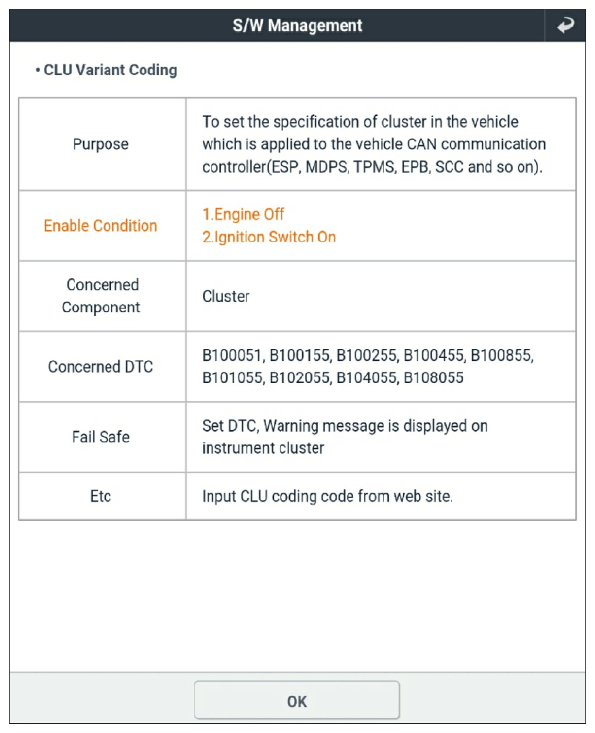

G13286144Courtesy of KIA MOTORS AMERICA, INC.

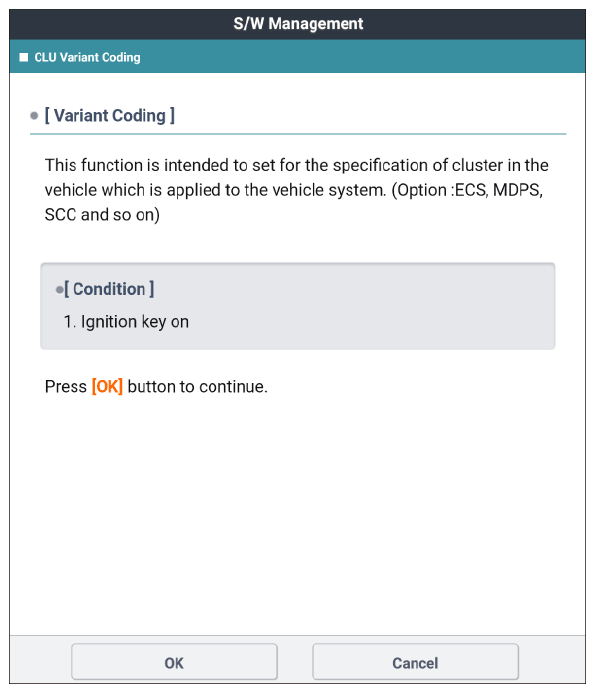

G13286145Courtesy of KIA MOTORS AMERICA, INC.

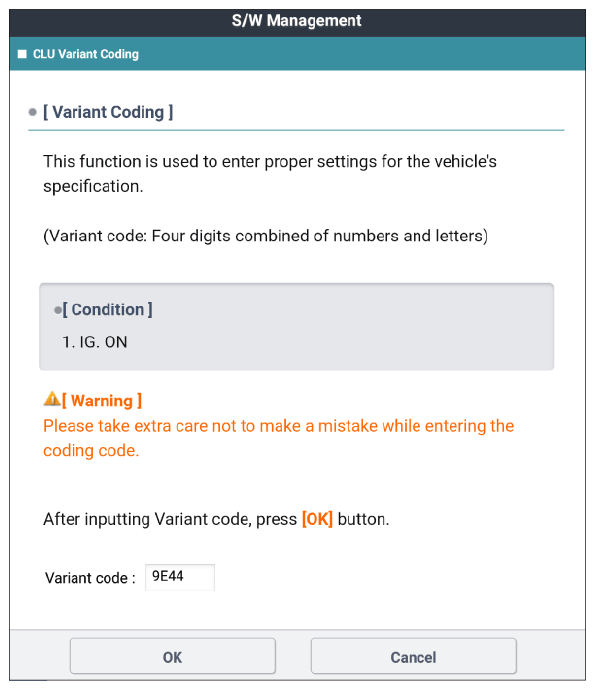

G13286146Courtesy of KIA MOTORS AMERICA, INC.

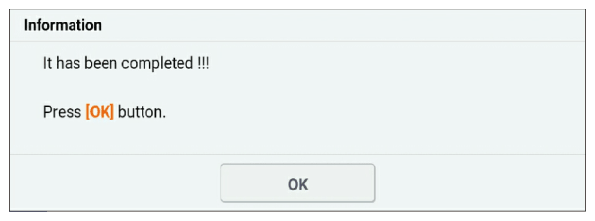

G13286147Courtesy of KIA MOTORS AMERICA, INC.

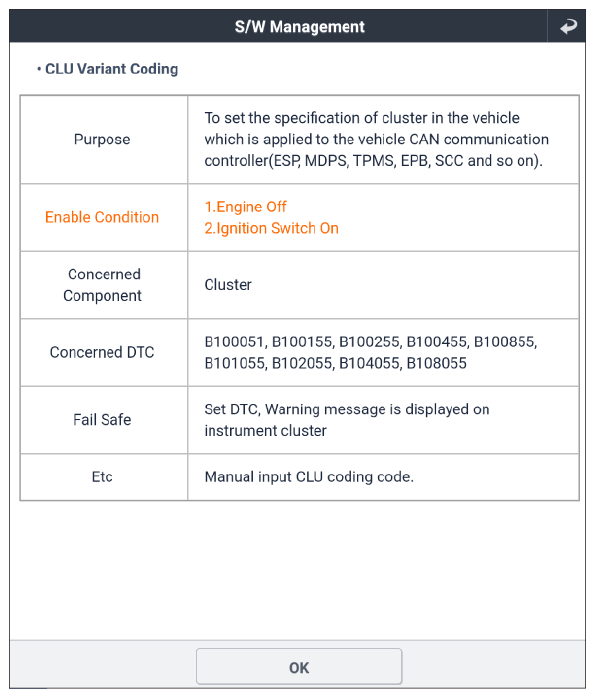

G13286148Courtesy of KIA MOTORS AMERICA, INC.

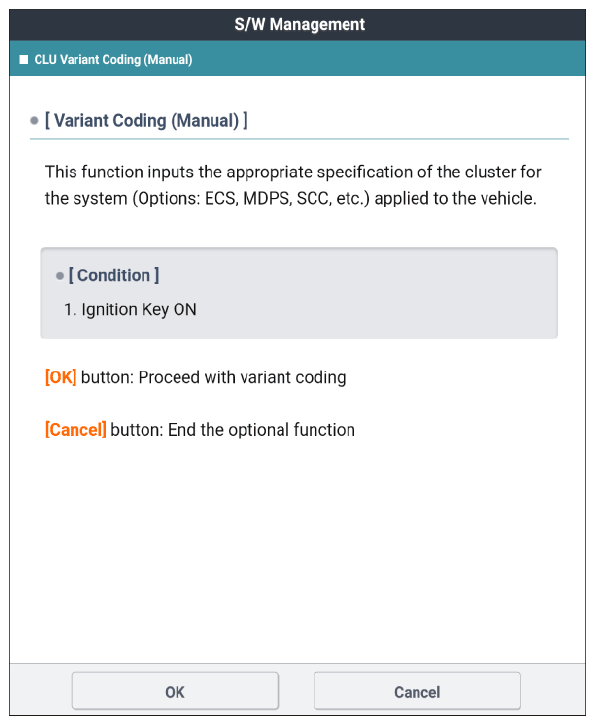

G13286149Courtesy of KIA MOTORS AMERICA, INC.

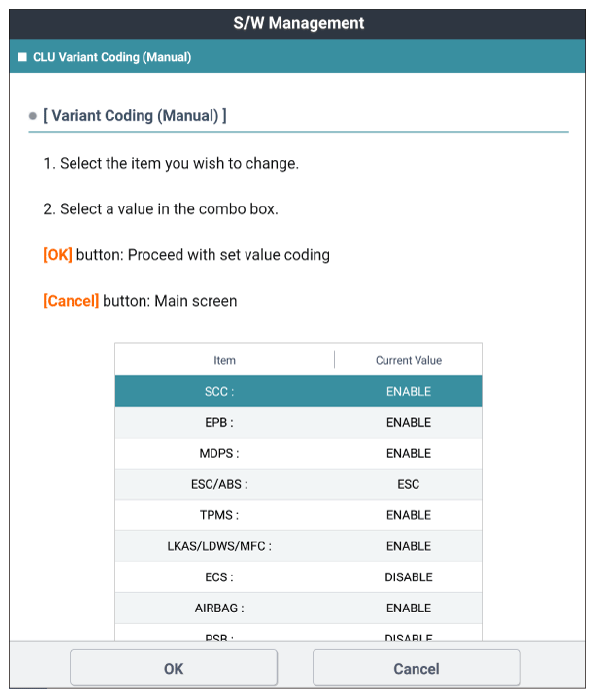

G13286150Courtesy of KIA MOTORS AMERICA, INC.

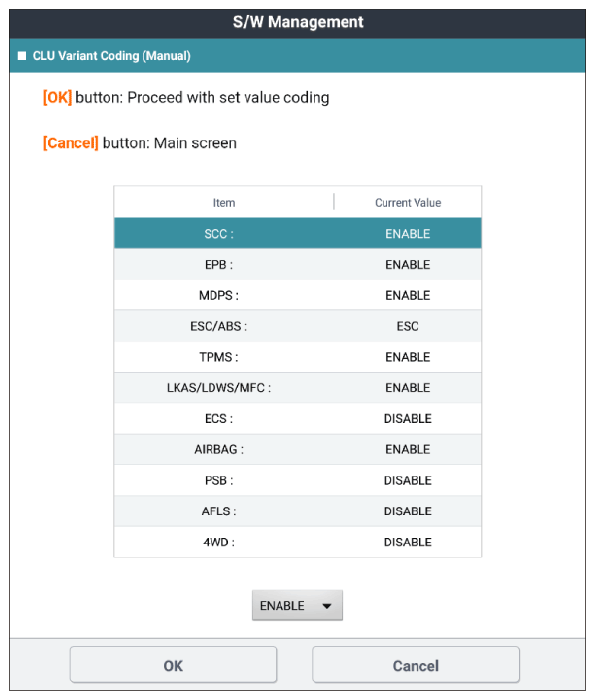

G13286151Courtesy of KIA MOTORS AMERICA, INC.
G13286152Courtesy of KIA MOTORS AMERICA, INC.
