Repair Procedures: Removal
- Remove the front seat back.
(Refer to Body - "FRONT SEAT BACK COVER ")
- Disconnect the connector (A) from lumber support motor.
- Remove the side airbag.
(Refer to SIDE AIRBAG (SAB) MODULE ")

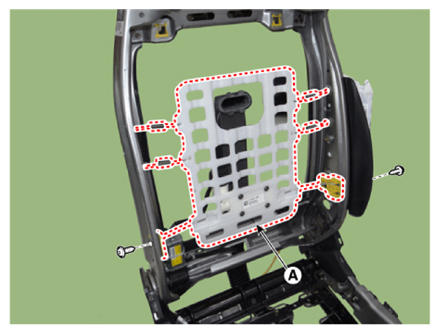

- Remove the lumber support (A) after loosening the screws.
