Repair Procedures: Inspection

  1. Remove the front seat shield outer cover.

    (Refer to Body - "FRONT SEAT SHIELD OUTER COVER ")

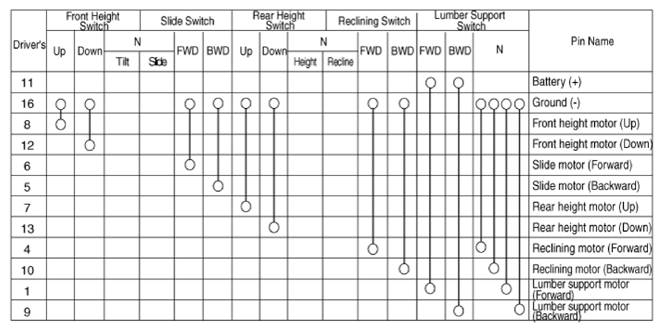

  2. When the battery power is supplied to the power seat control switch connector, check the motor for smooth operation.
    G13282817Courtesy of KIA MOTORS AMERICA, INC.
