Repair Procedures: Removal

  1. Remove the front seat shield outer cover.

    (Refer to Body - "FRONT SEAT SHIELD OUTER COVER ")

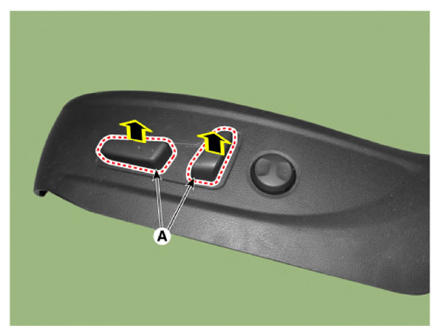

  2. Remove the knob (A) from the power seat control switch.
    G13282818Courtesy of KIA MOTORS AMERICA, INC.

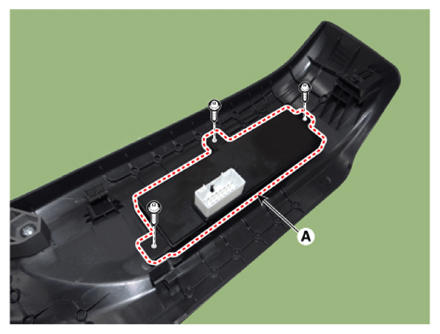

  3. Remove the power seat control switch (A) after loosening the screws.
    G13282819Courtesy of KIA MOTORS AMERICA, INC.
