Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

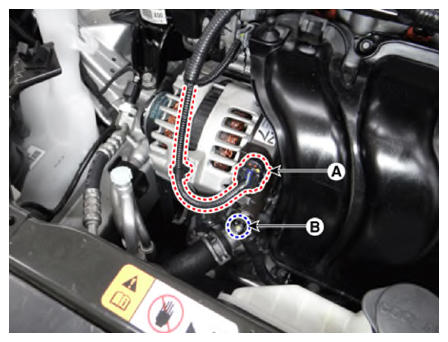

  2. Disconnect the alternator connector (A).
  3. Disconnect the alternator "B" terminal (B) after loosening the mounting nut.
    G13283621Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the drive belt.

    (Refer to Engine Mechanical System - "DRIVE BELT ")

  5. Remove the idler.

    (Refer to Engine Mechanical System - "IDLER ")

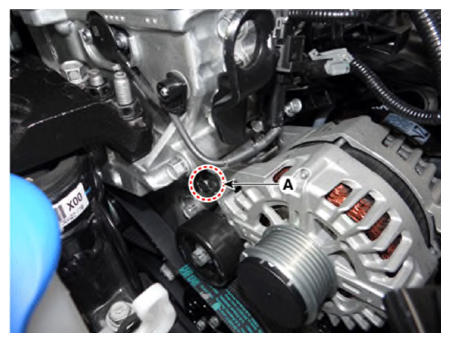

  6. Remove the alternator upper mounting bolt (A).

    Alternator upper mounting bolt:

    29.4 - 41.2 N.m (3.0 - 4.2 kgf.m, 21.7 - 30.4 Ib.ft)

    G13283622Courtesy of KIA MOTORS AMERICA, INC.

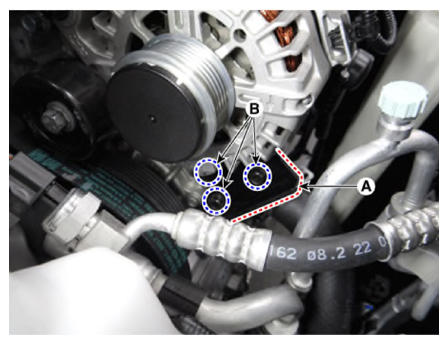

  7. Remove the alternator mounting bracket (A) after loosening the lower mounting bolts (B).

    Alternator bracket & lower mounting bolt:

    21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 Ib.ft)

    G13283623Courtesy of KIA MOTORS AMERICA, INC.

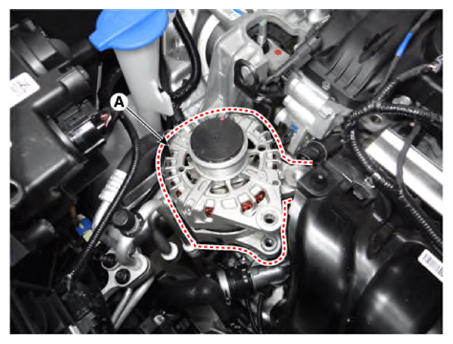

  8. Remove the alternator (A).
    G13283624Courtesy of KIA MOTORS AMERICA, INC.
