Repair Procedures: Removal

  1. Disconnect the negative battery terminal.

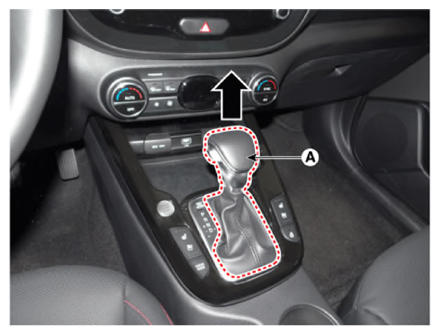

  2. Remove the knob (A) by pulling it in the direction of the arrow after separating the boots from the console upper cover.
    G13282425Courtesy of KIA MOTORS AMERICA, INC.

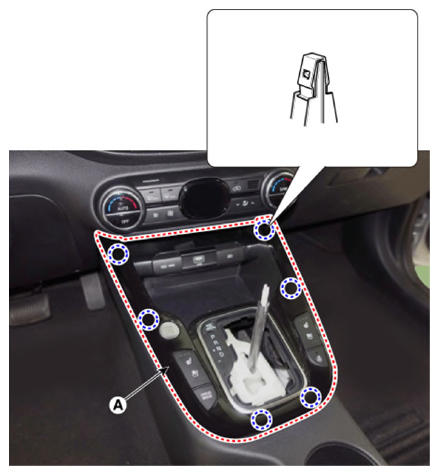

  3. Remove the console upper cover (A).
    G13282426Courtesy of KIA MOTORS AMERICA, INC.

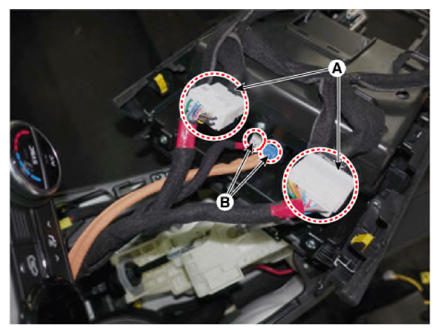

  4. Disconnect the extension connector (A) and multimedia jack connectors (B).
    G13282427Courtesy of KIA MOTORS AMERICA, INC.

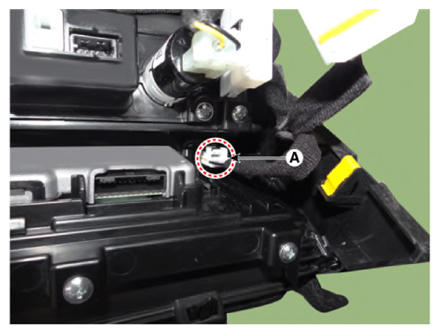

  5. Disconnect the connector (A) from the wireless power charger indicator.
    G13282428Courtesy of KIA MOTORS AMERICA, INC.

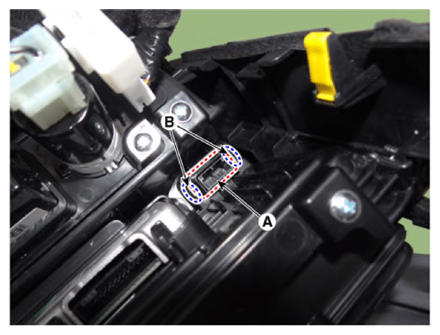

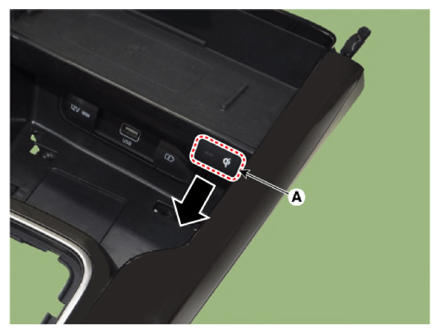

  6. Remove the wireless power charger indicator (A) by pressing the fixing hooks (B).
G13282429Courtesy of KIA MOTORS AMERICA, INC.
G13282430Courtesy of KIA MOTORS AMERICA, INC.
