Description & Operation: Description: Notes

HUD system displays various information on the combiner which minimizes the driver's eye movement to enhance safety and convenience.

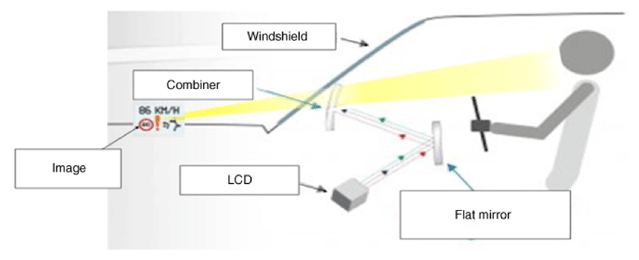

The Head Up Display reflects the TFT LCD images to flat mirror & combiner then displays them 2.0m ahead from the driver's eye.

Courtesy of KIA MOTORS AMERICA, INC.

Information provided by HUD

1. Drive information: Vehicle speed
2. Turn by Turn navigation information, road signs.
3. ADAS: SCC, LKA, BCW
