Repair Procedures: Removal

1. Remove the front bumper assembly.

   (Refer to Body - "FRONT BUMPER ASSEMBLY ")

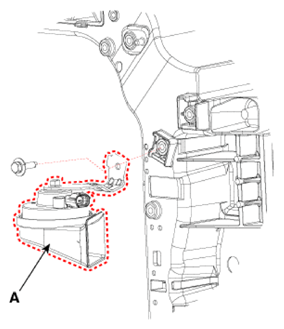

2. Remove the horn (A) by loosening the bolt after disconnecting the connector.

Courtesy of KIA MOTORS AMERICA, INC.
