Removal And Installation

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").
Turn the ignition switch OFF, and then remove battery (-) terminal.

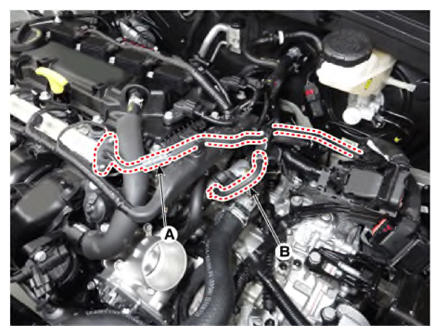

Disconnect the fuel hose (A) and the purge control solenoid valve (PCSV) hose (B).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel tank.
(Refer to Fuel Delivery System - "FUEL TANK ")

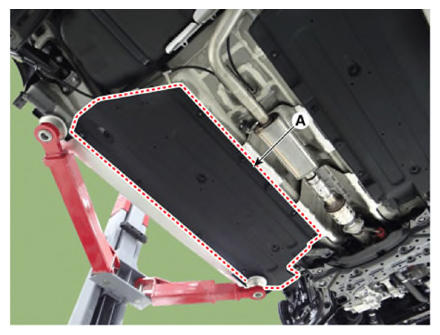

Remove the under cover [LH] (A) after loosening the mounting nuts.

Courtesy of KIA MOTORS AMERICA, INC.

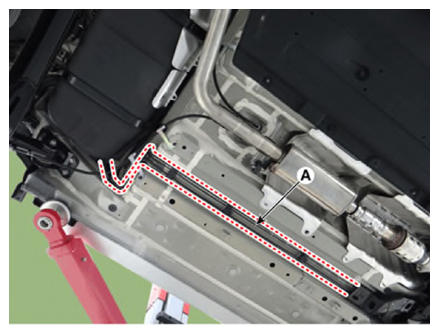

Remove the fuel line (A) after loosening the mounting bolts and bracket.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
- Do not use already used injector fixing clip again.
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
