Removal And Installation

Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")

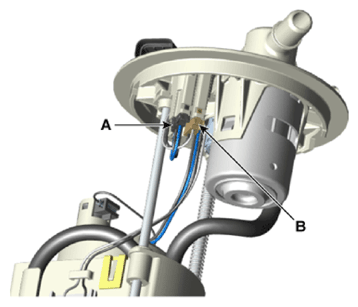

Disconnect the fuel pump motor connector (A) and fuel sender connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

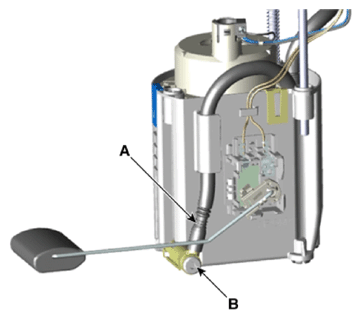

Disconnect the return nozzle (A) after releasing the hook (B).

Courtesy of KIA MOTORS AMERICA, INC.

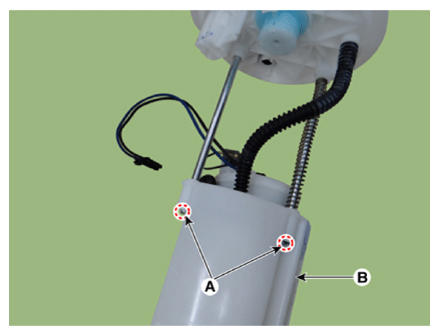

Remove cushion hook (A) and then remove the reservoir cup (B).

Courtesy of KIA MOTORS AMERICA, INC.

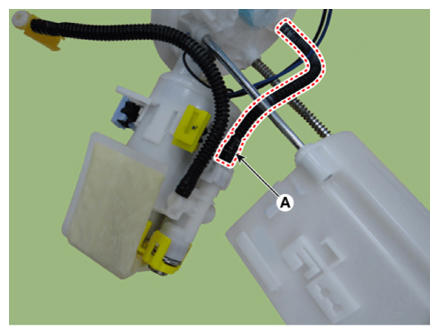

Disconnect the feed tube (A).

Courtesy of KIA MOTORS AMERICA, INC.

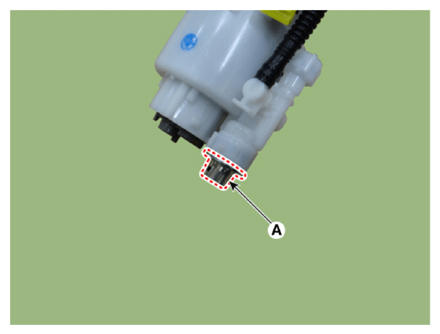

Remove the pre-filter (A).

Courtesy of KIA MOTORS AMERICA, INC.

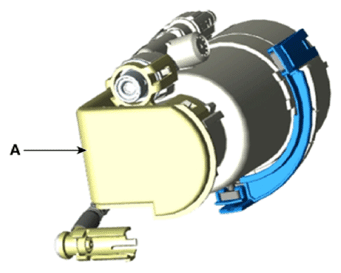

Remove the fuel pressure regulator (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
