Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").

  2. Remove the rear seat.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

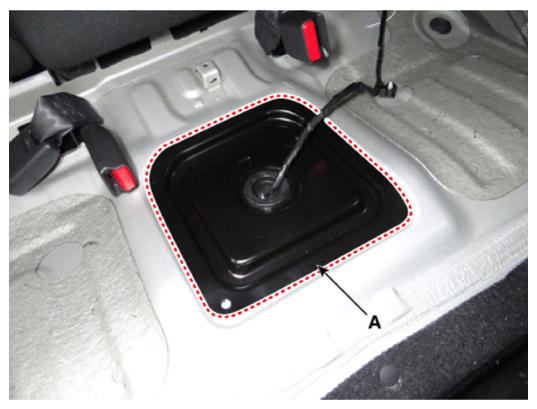

  3. Remove the fuel pump service cover (A).
    G13283853Courtesy of KIA MOTORS AMERICA, INC.

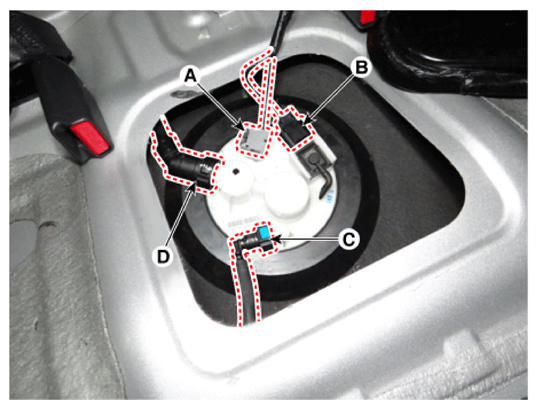

  4. Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).
  5. Disconnect the fuel feed tube quick connector (C) and the vapor tube quick-connector (D).
    G13283854Courtesy of KIA MOTORS AMERICA, INC.

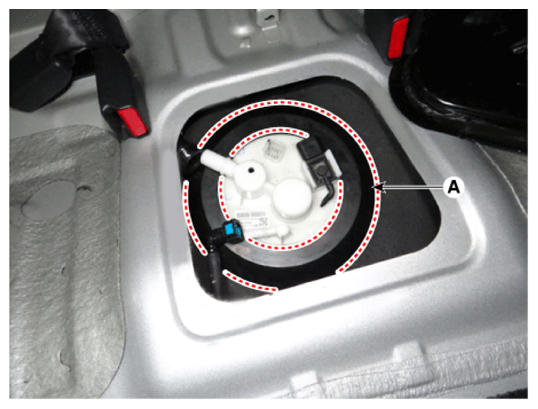

  6. Remove the fuel pump grommet (A).
    G13283855Courtesy of KIA MOTORS AMERICA, INC.

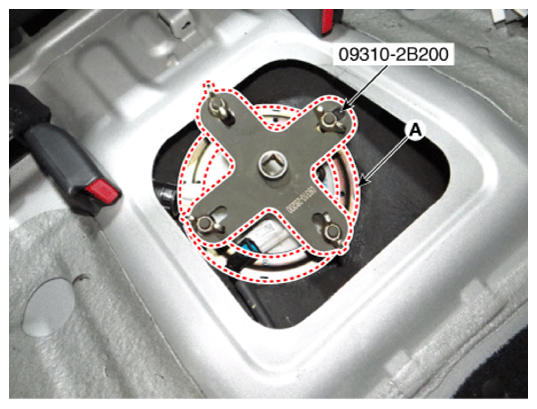

  7. Remove the fuel pump plate cover (A) by using the SST (09310-2B200)
    G13283856Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove the fuel pump from the fuel tank.
