Component Inspection

Inspection Condition (+) Probe (-) Probe Reference
Connector Terminal Connector Terminal
  1. Engine "ON" (Warm up condition).

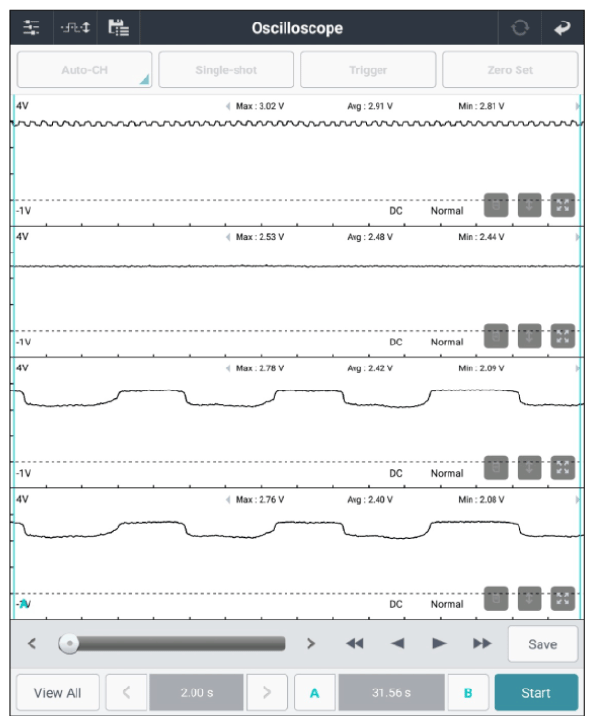

 HO2S (Bank1, Sensor1) connector 1 (nernst voltage) HO2S (Bank1, Sensor1) connector 3 (virtual ground) Fig.1
HO2S (Bank1, Sensor1) connector 4 (trim resistor) HO2S (Bank1, Sensor1) connector 6 (pumping current)
G13291395Courtesy of KIA MOTORS AMERICA, INC.

Good

  1. Go to "Verification of Repair " procedure.

No Good

  1. Carefully re-do this troubleshooting guide steps.
  2. If no problems were found with the circuits or connectors, replace the HO2S (Bank1, Sensor1) and go to "Verification of Repair " procedure.
