Repair Procedures: Removal

Disconnect the negative battery terminal.
NOTE: After disconnecting the cables, wait at least 30 seconds.
Remove the front seat back cover.
(Refer to Body - "FRONT SEAT BACK COVER ")

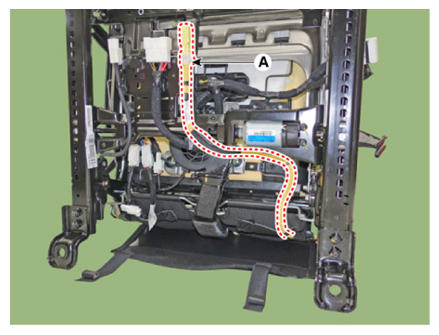

Remove the side airbag wiring (A) after loosening the side airbag wiring clips.

Courtesy of KIA MOTORS AMERICA, INC.

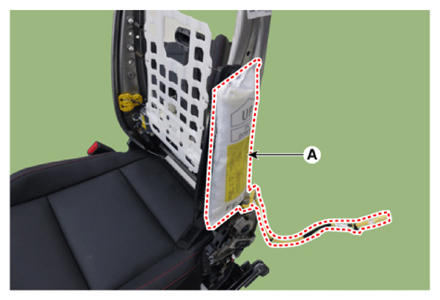

Remove the side airbag (A) by loosening the nuts.
Tightening torque:

5.8 - 7.8 N.m (0.6 - 0.8 kgf.m, 4.3 - 5.7 lb.ft, 52.0 - 69.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
